PIGATOR PIGATOR
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
- more information soon -
PIGATOR
- more information soon -

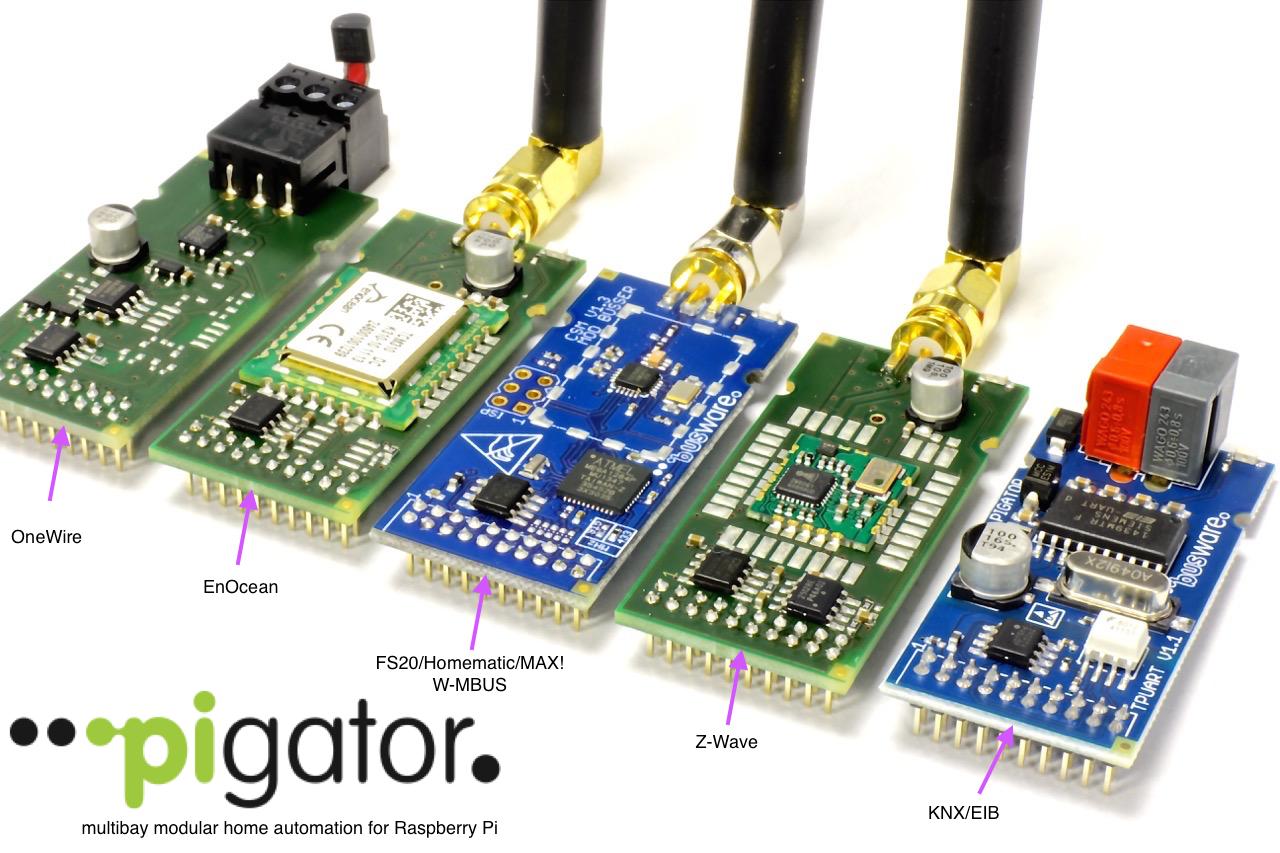

available modules:
- CC1101 for FS20/Homematic/MAX!/WMBUS etc.
- Onewire
- Z-WAVE
- EIB/KNX

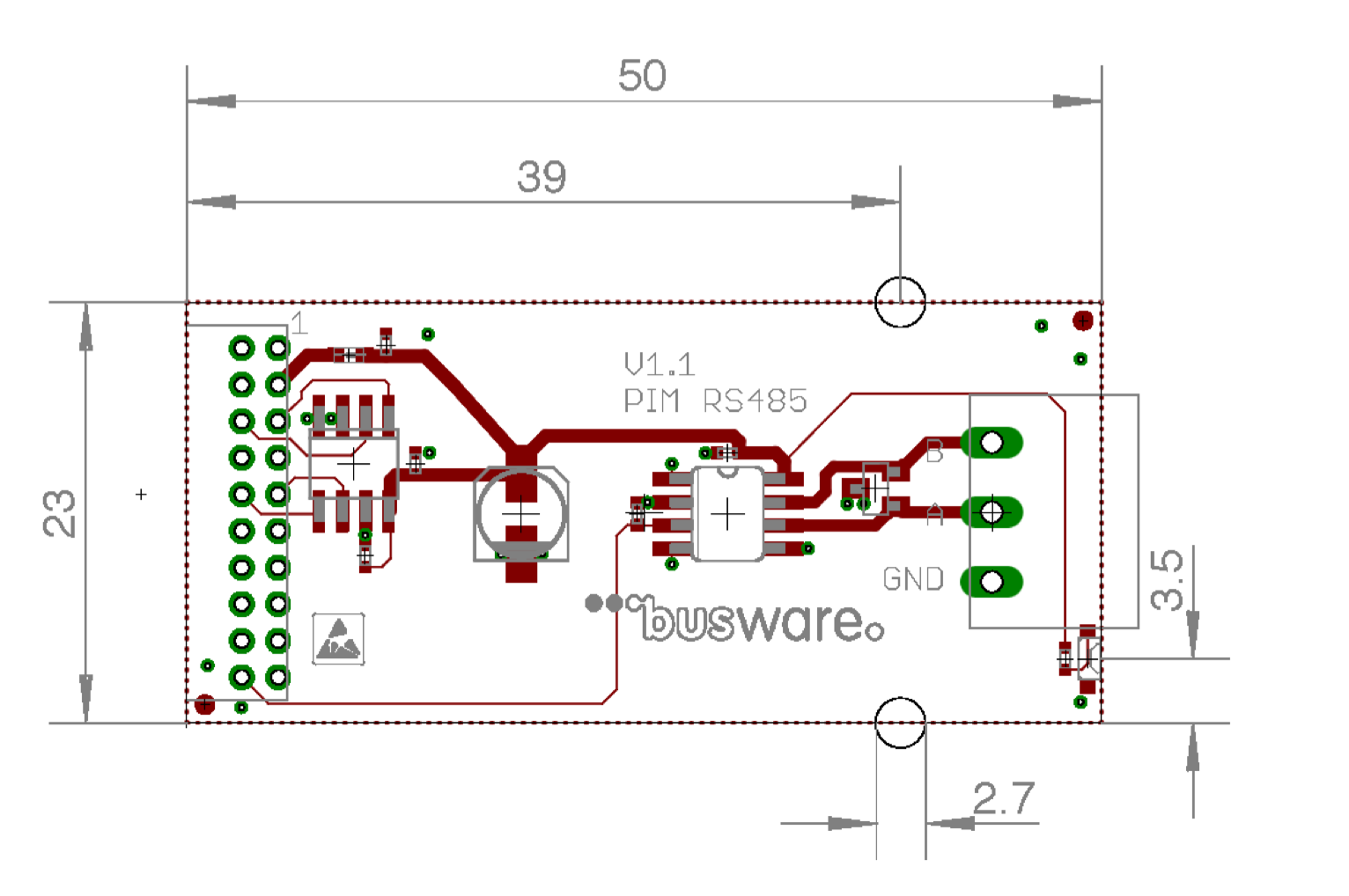

- RS485
- 2ch S0-meter-interface
- proprietary Homematic-UART module
- BLE-Scanner
- GSM modem
- CAN
- wired MBUS
- DALI Find them here in the shop.
available carriers:
-
Raspberry HAT-style: **Pigator Single - is just an Raspberry-to-Pigator modul adapter with no additional functionality **Pigator OneWire HAT
-
Raspberry for DIN-rail ** Pigator-Onewire-RTC on DIN rail
-

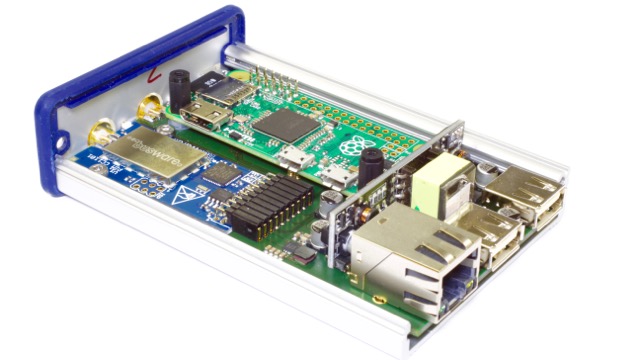

non-Raspberry: **NMC - networked modul carrier **Tuxradio version 4 **NMC2 - networked modul carrier - V2 w/WiFi & Bluetooth

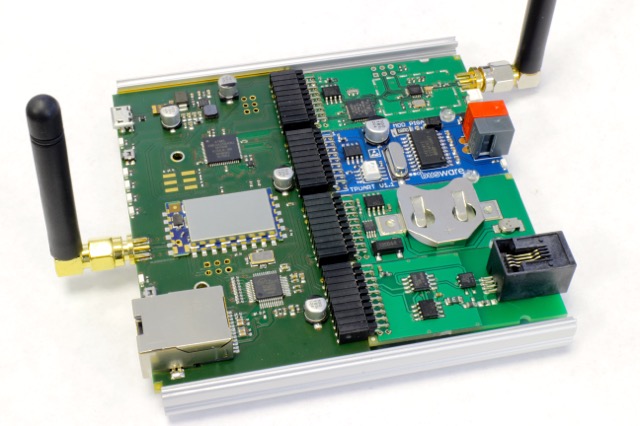

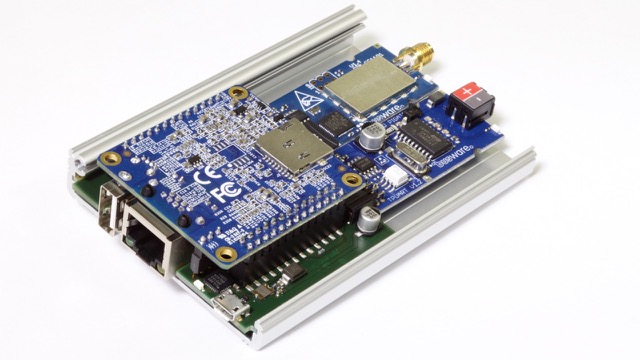

**BUSSER - Wifi-USB-Network access to 4/8 PIGATOR slots
**CUNX

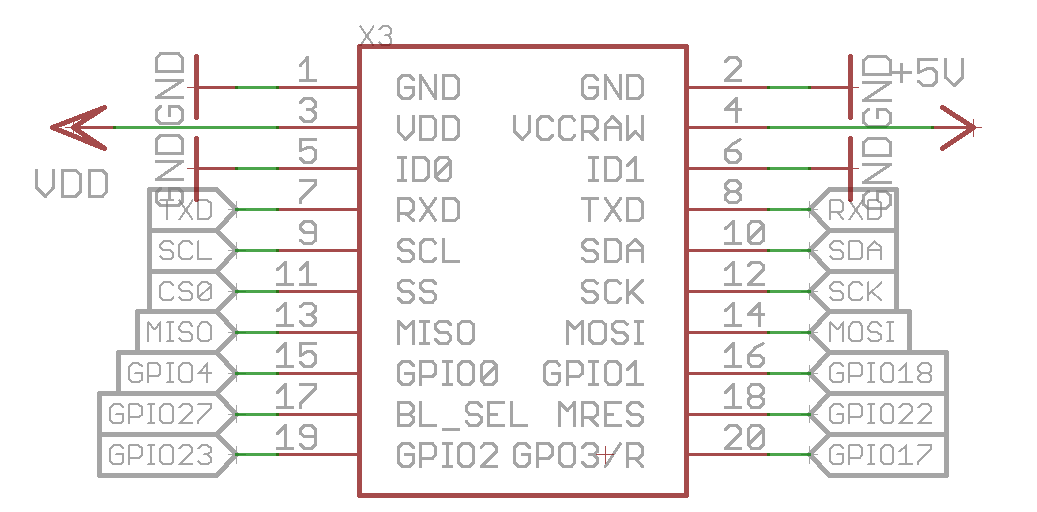

Modul connector
All modules use the same pinout on 2x10P 2.00mm header. Modul carriers dedicate an UART, I2C, SPI and several GPIOs to each slot. Example below:
