CUNX CUNX

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

The CUNX is replacing the CUNO. Onewire has been opt-out by default, but can be added, if needed as PIGATOR module.

CUNX - CC1101 USB Network + eXpansion slot …

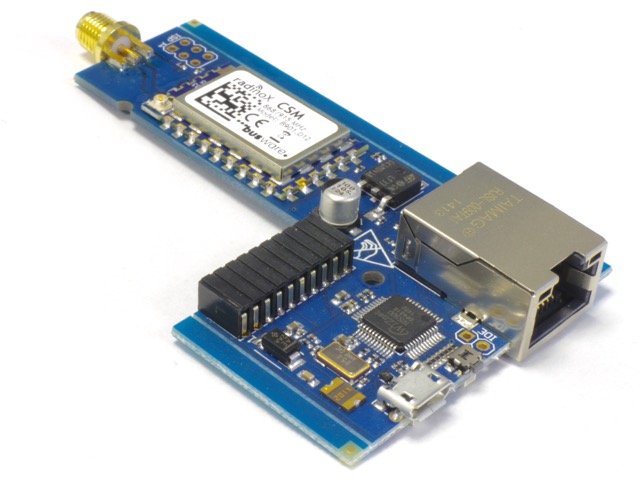

Board with Ethernet jack, radio module and SMA antenna connector

General

The CUNX is replacing the CUNO. Onewire has been opt-out by default, but can be added, if needed as PIGATOR module.

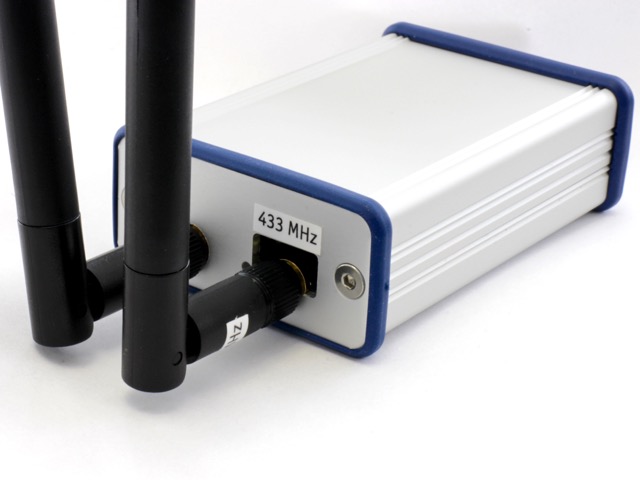

second CC1101 interface loaded in aluminium housing

see:

Specs

xmega128a4u cpu @ 32MHz
CC1101 @ 868MHz or 433MHz
RP-SMA socket
native USB supporting LUFA
powered by microUSB socket
100MBit Ethernet - W5500
DFU-bootloader w/ switch
PIGATOR module slot
aluminum enclousure

Firmware support

The device is supported by “culfw v2”-firmware - see GitHub

Updating firmware

Press the “bootload” button in the middle of USB and network socket while powering up the device so the dfu bootloader will start. To load the firmware do:

dfu-programmer atxmega128a4u erase dfu-programmer atxmega128a4u flash CUNX.hex

Price and availability

This extension is available in our shop
