POD POD

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

This module has one PIGATOR slot, RTC and Onewire interface

POD - Pigator host, RTC and Onewire on DIN-rail

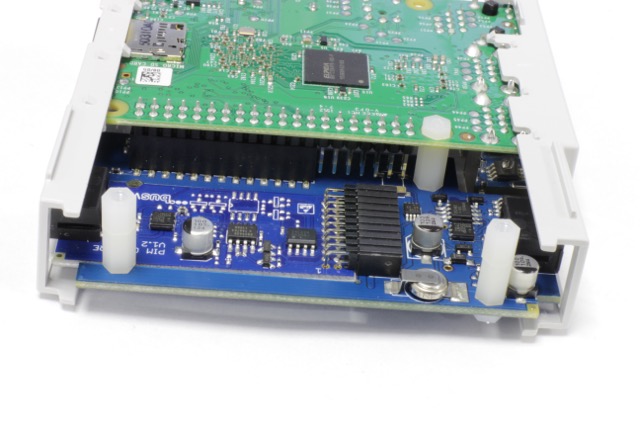

POD w/ Pigator modul mounted in DIN-rail case

General

This module has one PIGATOR slot, RTC and Onewire interface

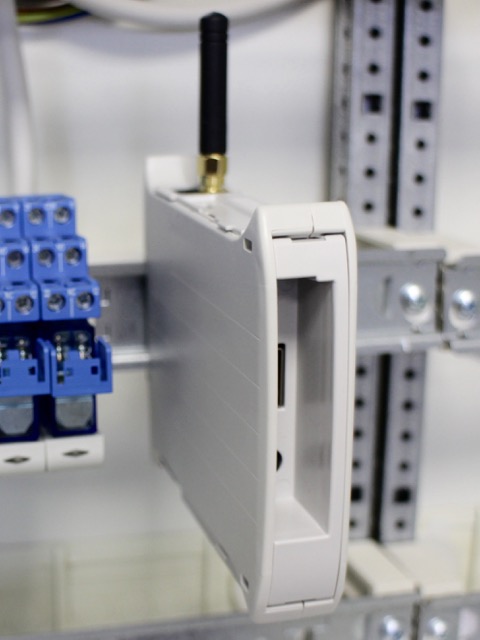

CC1101 pigator module loaded in slim DIN-rail housing

see:

Specs

PIGATOR module slot on RPI serial interface ttyAMA0 & GPIO
RPi-powered
DS2482-OneWire @ I2C w/ 5V Levelshifter & strong pullup, short circuit protection
DS1338 RTC with super cap energy storage
for ITALTRONIC DIN-rail enclosure (10.0012225.RMB) - RPi models B+ and V2/3

Installation

read the Installation guide

Price and availability

This extension is available in our shop
