TuxRadio TUXRADIO

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

::!miniature RPi-Zero based Linux system with 868MHz radio interface and additional expansion slot::

TuxRadio Version 4 - Linux & SRD radio & PIGATOR

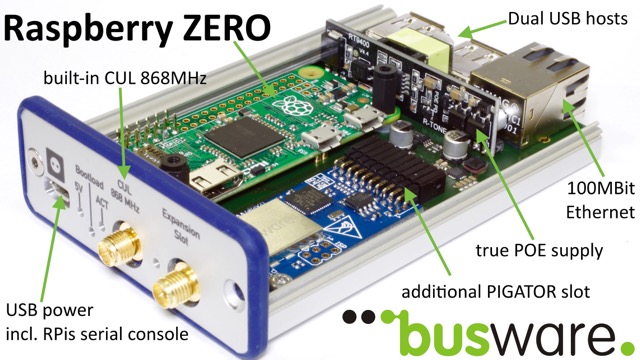

:: miniature RPi-Zero based Linux system with 868MHz radio interface and additional expansion slot ::

old TuxRadio version 2 wiki

Spec

driven by Raspberry Zero

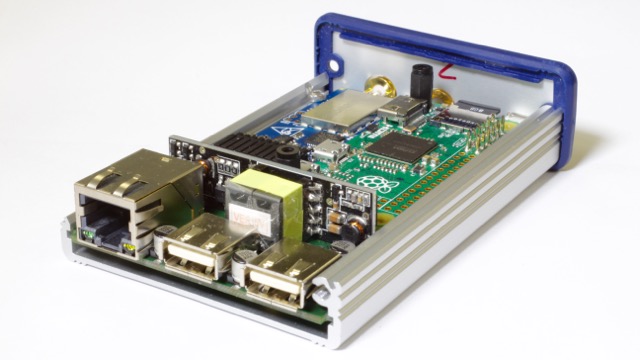

100MBit LAN
true four data wire POE (Power over Ethernet) power supply
dual USB host for WLAN, BLE or UMTS/HSDPA connectivity
CUL built in (/dev/ttyACM0)
one additional PIGATOR extension slot (/dev/ttyACM1)

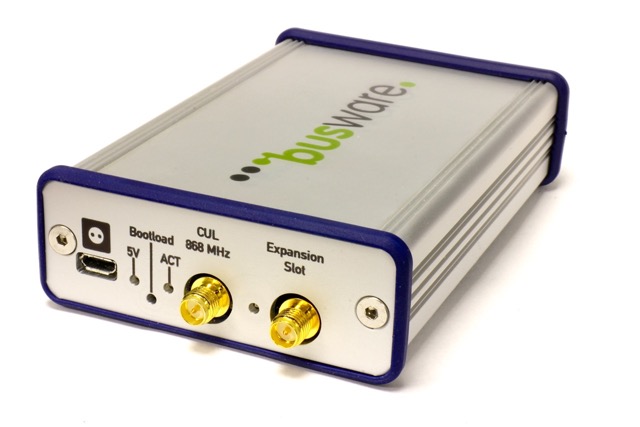

slim aluminium housing
micro USB power supply - including serial console to RPi-Zero for configuration

Installation

Raspberry Zero mounting

Software/Sources

culfw firmware for build-in CUL at github
you may use any software/image provided for Raspberries
RaspiMatic installation

Price and availability

This TuxRadio V4 is available in our shop.
