PIG OW PIG_OW
Archive — discontinued
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

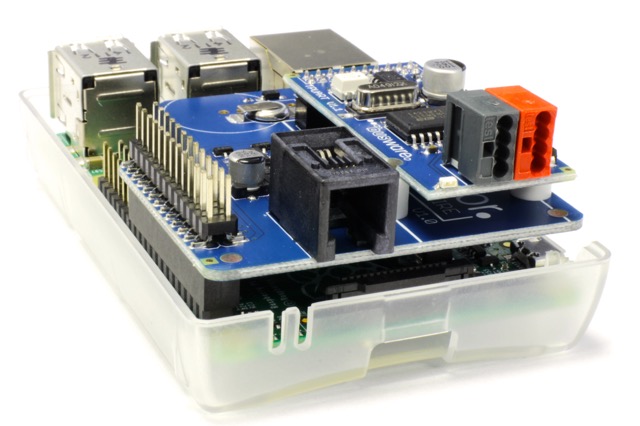

This device can carry one PIGATOR module and has itself OneWire connectivity and supercap backed Real-Time-Clock.

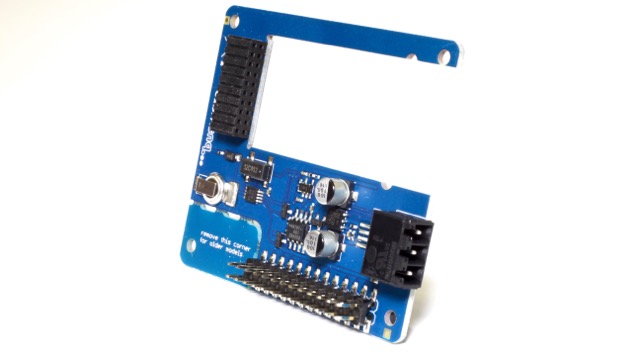

PIGATOR Onewire - a single module carrier with RTC and 1wire
General
This device can carry one PIGATOR module and has itself OneWire connectivity and supercap backed Real-Time-Clock.
see:
Specs
- modified HAT outline: fits on all RPi models A/B A+/B+ - and Banana Pi
- DS2482-OneWire @ I2C w/ 5V Levelshifter & strong pullup @ RJ10-4P4C
- DS1338 RTC with super cap energy storage
- 1 slot for PIGATOR module
- uplink header
Onewire
Front view plug / Stecker von vorn
3-yellow (+5V - 350mA fused) / 4-green (OW) / 5-red (OW) / 6-black_or_white (GND)
Installation
- read our installation guide
Price and availability
This extension is available in our shop starting 39 Euros.
