BUSSER BUSSER

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

This device has multiple PIGATOR slots which can accessed by USB, LAN or WiFi (depending on model).

BUSSER - multi port host for PIM (PIgator Modules)

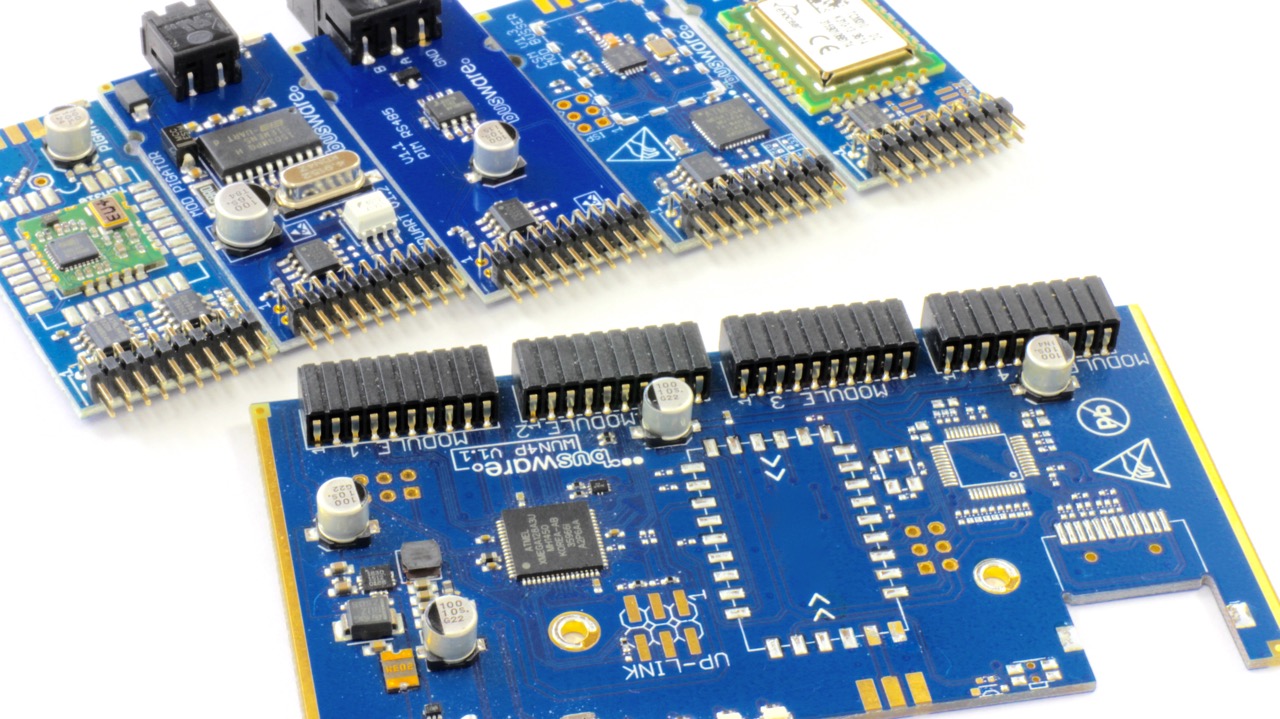

BUSSER 4P USB w/ PIM

General

This device has multiple PIGATOR slots which can accessed by USB, LAN or WiFi (depending on model).

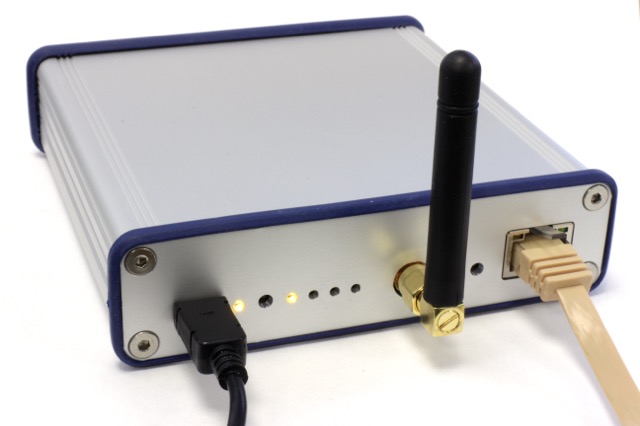

4-port BUSSER in aluminium housing

see:

Specs

multiple slots for PIGATOR modules
microUSB-powered

Firmware

pre-compiled binary

PIM service access

Send “BREAK” i.e. minicom: “Ctrl-A F” to get port information as:

Slot: 1 Module: CSM868 @ 38400 baud

within 1 second after the BREAK you might send an additional character - use:

(BREAK b) - to start PIM bootloader
(BREAK r) - to reset PIM

CSM flashing:

after (BREAK b) use avrdude like:

avrdude -p atmega1284p -P /dev/ttyACM0 -c avr109 -V -U flash:w:PCM.hex

Price and availability

A USB-only version is available in our shop already
