Stackable CC1101 868 MHz transceiver board for the Raspberry Pi, compatible with culfw.

SCC - Stackable CC1101 w/ MPU for Raspberry Pi

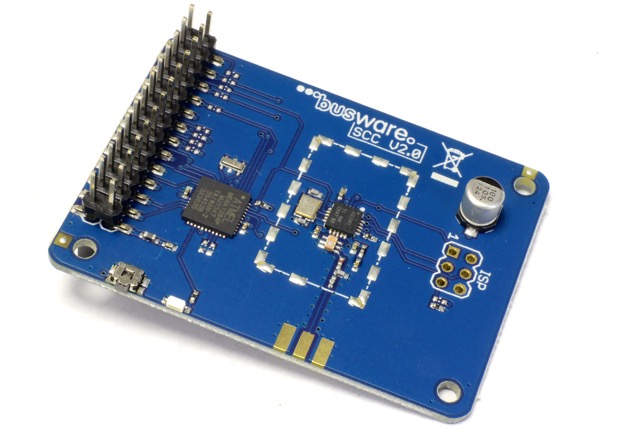

HAT-like shaped V2 board

General

This module adds multiple CC1101 RF transceivers to your Raspberry PI. The contained ATMEL processor chains the serial port and may contain protocol specific firmware.

see:

Specs

hard- and software compatible with SCC V1 boards

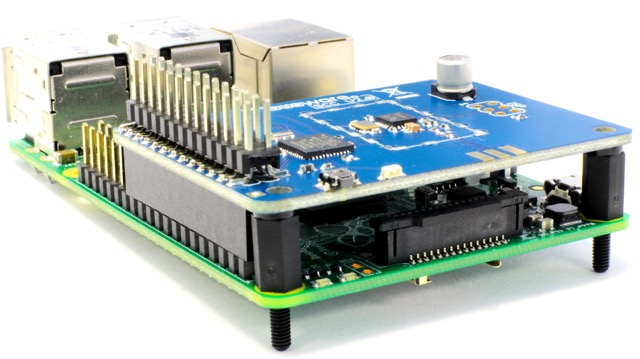

direct mount onto all Raspberry Pi models
CC1101 radio frontend (433/868/915MHz) w/ m1284p co-processor
LED
Microswitch
avr109-bootloader support using USART
SCC occupies UART RX/TX- and GPIO17/18-Pins - all other pins are left untouched
on top you can add a final existing extensions COC, CCD etc.

Documents

basic installation guide
ISM-Transceiver CC1101

Application firmware for the SCC

culfw support - see README

Price and availability

This module is available in our shop starting 44 Euro (incl. VAT)

Acknowledgement

Raspberry Pi is a trademark of the Raspberry Pi Foundation
