CCD CCD

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

Click here for previous model CCDv1 pages

CC1101 - Clock - Display for Raspberry Pi

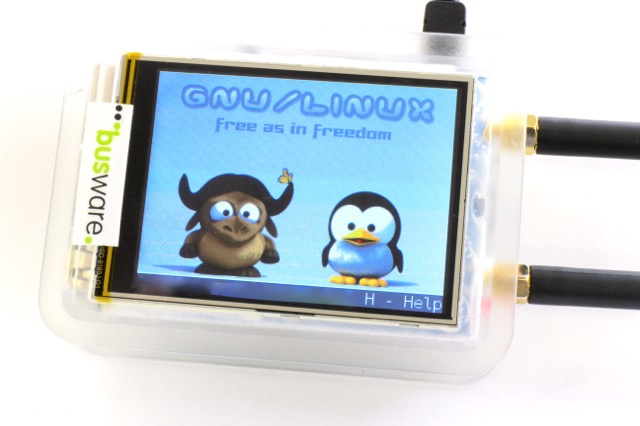

CCD within case and additional extension Click here for previous model CCDv1 pages

General

give your Pi a radio and “face” …

Specs

CC1101 transceiver tuned for 868MHz w/ xmega co-processor
PIGATOR expansion slot
ILI9341 based 3.2” TFT Display (240x320) with resistive touchscreen (ADS7846) supported by fbtft
DS1338-RealTimeClock with SuperCAP energy storage
LIRC supported IR receiver (must use transparent case!)
CCDv2 PCB now fits onto all Raspberry models
milled TEK-BERRY+ enclosure for RPi+ or RPi2

Documents

Installation guide

References

Linux Framebuffer drivers for small TFT LCD display modules

Availability

This extension is available in our shop
