COC COC
Archive — discontinued
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
CC1101 radio extension for the Raspberry Pi, with RTC, EEPROM and OneWire.

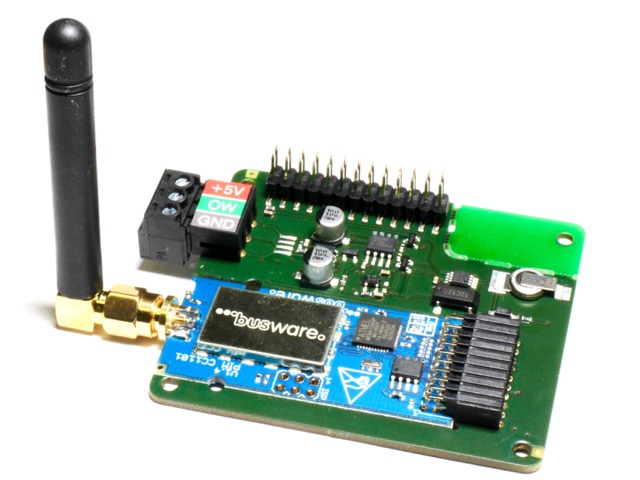

COC a CC1101-OneWire-Clock extension for Raspberry Pi
COC is based on PIM-CC1100 plus an OneWire-Host
General
Specs
- direct mount onto all Raspberry Pi
- CC1101 radio frontend (433/868MHz) w/ m1284p co-processor
- RP-SMA socket
- DS1338 RTC @ I2C - w/ SuperCap backup
- LED
- DS2482-OneWire @ I2C w/ 5V Levelshifter & strong pullup
Documents
- basic installation guide
Firmware for the COC
- culfw support - see README
Price and availability
This module is available in our shop
Acknowledgement
Raspberry Pi is a trademark of the Raspberry Pi Foundation
