CC1101 - Clock - Display for Raspberry Pi

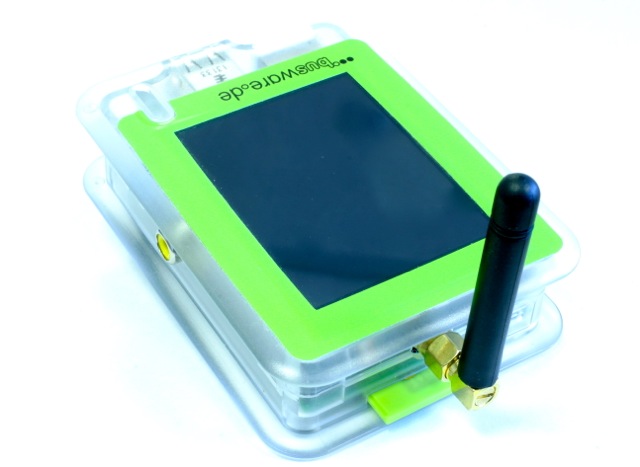

CCD with case and shorten microSD adapter This device has been re-designed! check out: CCD version 2

General

give your Pi a “face” …

YouTube:

Audio demo (of upcoming CAD-extension)
X11 and touchscreen test

Specs

CC1101 transceiver w/ co-processor m1284p with culfw/Contiki - optional ISP header
ILI9341 based 2.8” TFT Display (240x320) with touchscreen (ADS7846)
full Linux X11-support
DS1338-RealTimeClock with SuperCAP energy storage
UMFT200XD-like I2C breakout
LIRC supported IR receiver (must use transparent case!)

Documents

How to create a bootable SDcard - instructions here
basic installation guide
CCD V1.1 schematic

References

Linux Framebuffer drivers for small TFT LCD display modules

useful:

watch ARD TV live stream:

mplayer -nolirc -vo fbdev2:/dev/fb1 -vf scale=320:-3 http://daserste_live-lh.akamaihd.net/i/daserste_de@91204/master.m3u8

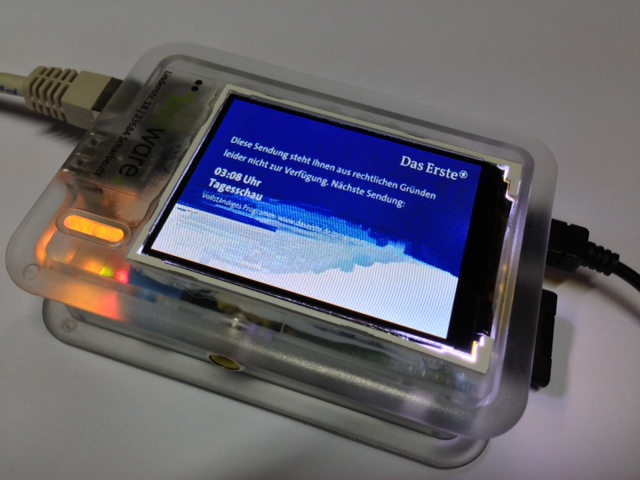

transparent case
