TuxRadio-V2 TUXRADIO-V2

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

see TuxRadio V3 for up-to-date model

TuxRadio Version 2 - Linux & SRD radio

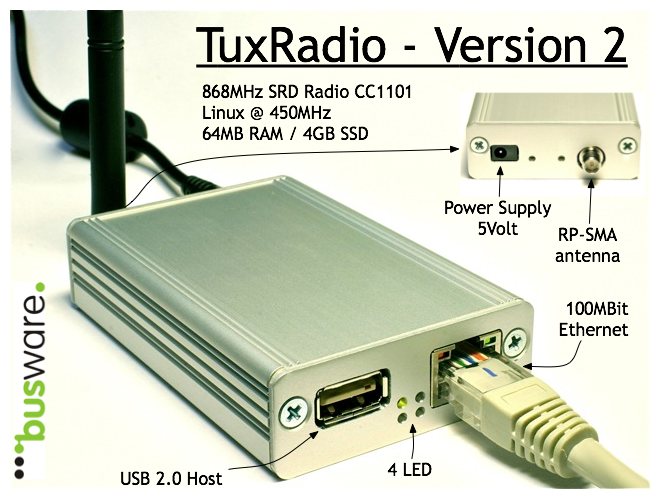

miniature 450MHz Linux system with 868MHz radio interface

see TuxRadio V3 for up-to-date model

Spec

i.mx233 ARM9 - 450 MHz
64MB DDR RAM
microSDHC HDD 2+ GB allowing full featured Debian to run
CSM 868MHz radio module (433/915MHz on request)
10/100MBit LAN
RP-SMA antenna socket
USB host for WLAN or UMTS/HSDPA connectivity
aluminium housing - as big as a cigarette pack
5V/2A power supply
6 LED
avg. power consumtion 2 watts

Software/Sources

Debian (Wheezy), Linux 3.8.7, FHEM 5.3 - SD card built instructions
Debian (Wheezy), Linux 3.8.7, FHEM 5.3 - Root-FS

Documents

basic installation guide

Price and availability

This TuxRadio V2 is no longer available in our shop.
