COC V1 COC_V1
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
The COC is discontinued. Its replaced by either Pigator-Onewire-DIN-rail, or if you just looking for a standalone CC1101 transceiver use SCC extension!

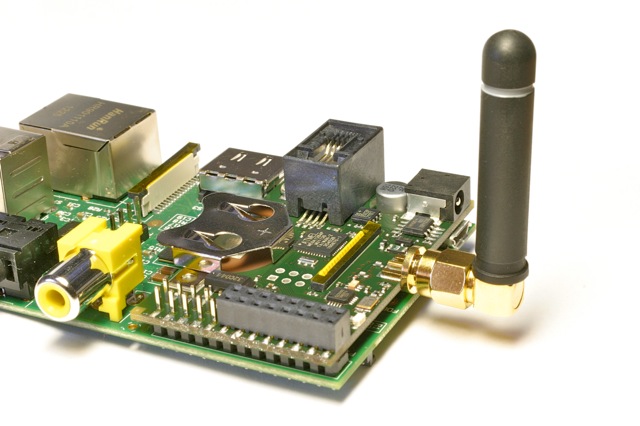

COC a CC1101-OneWire-Clock extension for Raspberry Pi
The COC is discontinued. Its replaced by either Pigator-Onewire-DIN-rail, or if you just looking for a standalone CC1101 transceiver use SCC extension!
General
This page is still under construction!
Specs
- direct mount onto Raspberry Pi module
- CC1101 radio frontend (433/868/915MHz) w/ m1284p co-processor
- RP-SMA socket
- DS1338 RTC @ I2C - w/ SuperCap backup
- LED
- DS2482-OneWire @ I2C w/ 5V Levelshifter & strong pullup @ RJ10-4P4C
- 5V power connector (Mating Plug Diameter: Inner 1,35 mm, Outer 3,5 mm)
Onewire
Front view plug / Stecker von vorn
3-yellow (+5V - 350mA fused) / 4-green (OW return) / 5-red (OW) / 6-black_or_white (GND)
Documents
- basic installation guide
- COC V1.1 schematic
- creating a SD card - with Raspbian & FHEM & COC patches contained
patched Linux for the RPi
- kernel+boot+modules-3.6.11-busware - modified Linux kernel and modules
- rpi-linux.patch - for Linux source to support COC extensions
Firmware for the COC
- culfw support - see README
Price and availability
This module is no longer available in our shop - you may use a SCC extension instead
Acknowledgement
Raspberry Pi is a trademark of the Raspberry Pi Foundation
