Universal CC1101 module (CM/CPM)

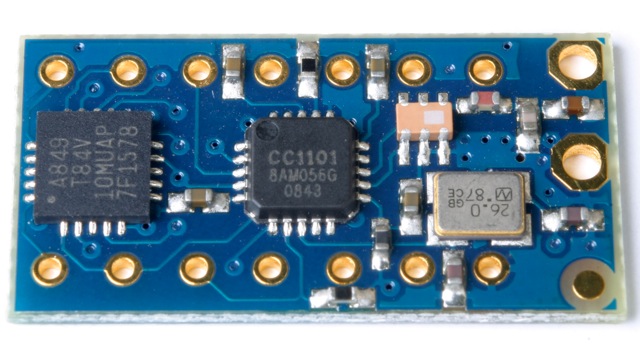

CPM with ATtiny processor mounted

General

End-Of-Life
see CSM instead

This universal transceiver module is as small as an Atmel ATTINY84 in a DIL14 package. Why an AVR ATTINY? Because the module can optionally carry this controller. So you are free to utilize the CC1101 directly with your own SPI-enabled controller or you may program the onboard ATTINY to your needs - using its I/O.

Have a look at this modules Image Gallery

Specs

  • DIL14 ATTINYx4 footprint
  • CC1101 transceiver tuned for 868MHz or 433MHz
  • onboard ATTINY84 processor
  • 3.3V

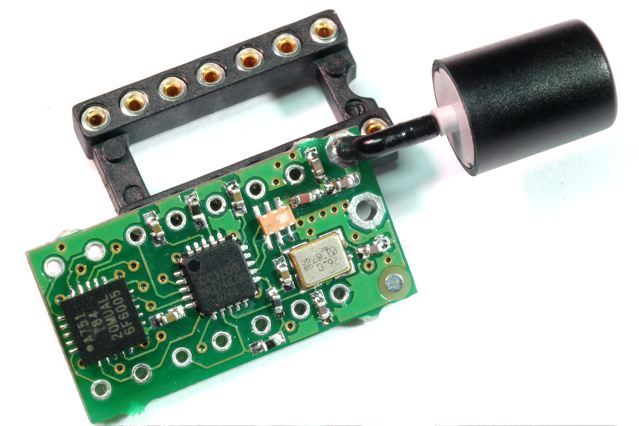

V2rc1 prototype with optional mirco antenna

Documents

Availability/Price

This module is no longer available in our shop - see CSM instead

Application

* Brightness sensor:

Have a look at sensors image gallery

* Wireless switch:

Project: Pimp my Funksteckdose

* Gardena Feuchtesensor FS20-Modul:
