PIG ETH PIG_ETH

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

This device can carry one PIGATOR module and has itself Ethernet connectivity and and Real-Time-Clock.

PIGATOR Ethernet - a single module carrier with RTC and Ethernet

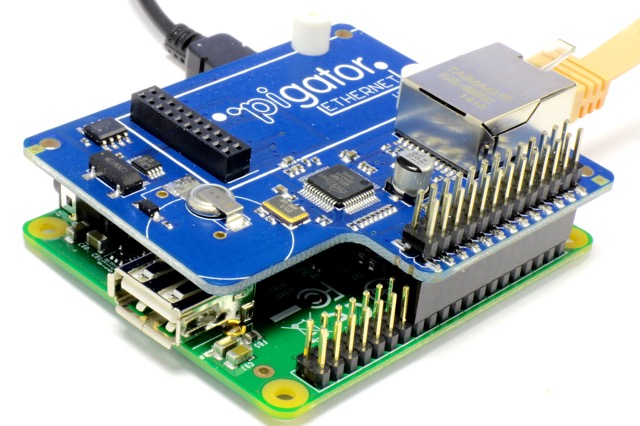

Raspberry A+ (green) driving the PIGATOR Ethernet

General

This device can carry one PIGATOR module and has itself Ethernet connectivity and and Real-Time-Clock.

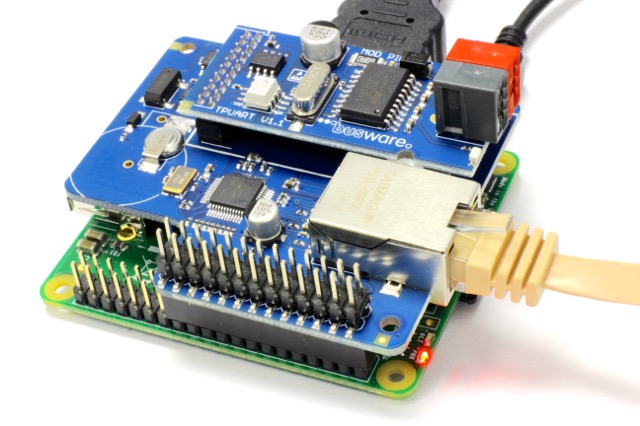

powerful EIB/KNX server based on RPi A+

see:

Installation

read the Installation guide for Pigator-Ethernet!

Specs

modified HAT outline: fits on all RPi models A/B A+/B+
100Mbit Ethernet (W5500 WIZnet)
DS1338 RTC with super cap energy storage
1 slot for PIGATOR module
stacking uplink header

Price and availability

This extension is no longer available in our shop.
