HOC HOC
Archive — discontinued
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
HOC is based on PIM-HM-MOD-UART plus an OneWire-Host

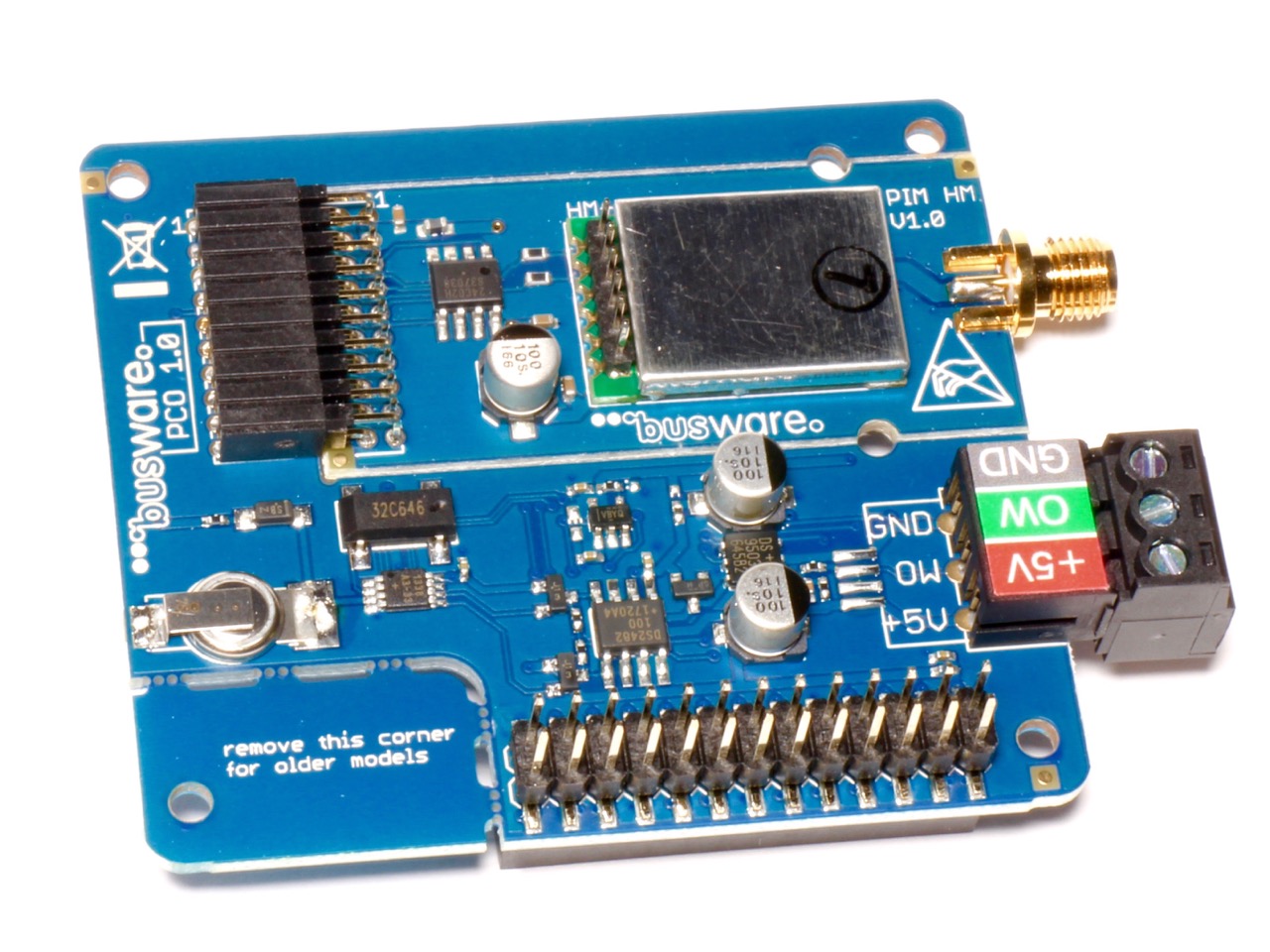

HOC a Homematic-OneWire-Clock extension for Raspberry Pi
General
HOC is based on PIM-HM-MOD-UART plus an OneWire-Host
Specs
- direct mount onto all Raspberry Pi
- PIM compliant with HM-MOD-RPI-PCB
- RP-SMA socket
- DS1338 RTC @ I2C - w/ SuperCap backup
- DS2482-OneWire @ I2C w/ 5V Levelshifter & strong pullup
- optional fitting enclosure
Application
Price and availability
This module is available in our shop
