The early prototype of a dual ISM transceiver with Infrared, USB and Ethernet interface.
Dual CC1101 with USB & Network - DCUN
This project has moved to CCX …
General

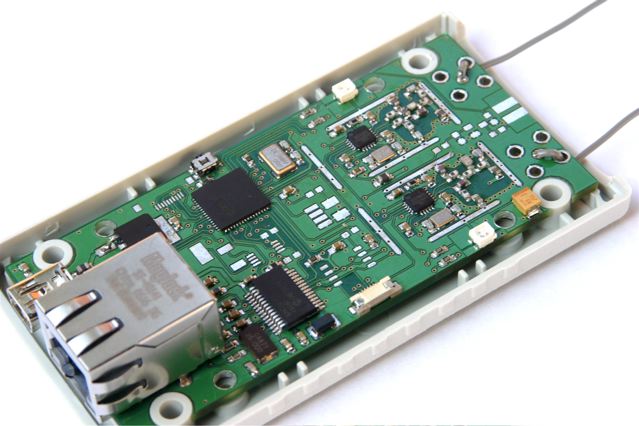

The early prototype of a dual ISM transceiver with Infrared, USB and Ethernet interface.
Specs
- AT90USB646/1286 processor 8MHz @ 3.3V
- Dual CC1101 - ISM transceiver tuned for 868MHz and 433 MHz
- SMA pinheaders
- ENC28J60 Ethernet
- ext 2MB data flash
- buffered Real Time Clock
- 950nm IR led and 38kHz IR receiver
- two dual-color multi purpose leds
- MiniUSB / RJ45 sockets
- JTAG and ISP connector
