CCX CCX
Archive — discontinued
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
n/a

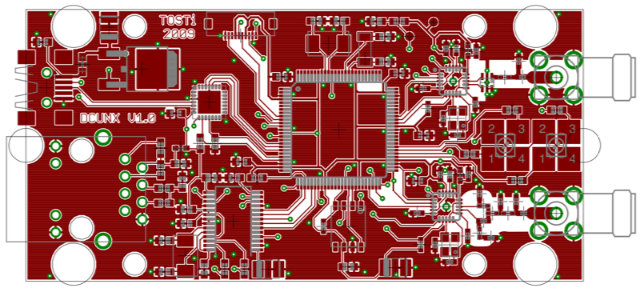

CC1101 with ATXmega
General
n/a
Specs
- ATXMEGA128A processor 32MHz @ 3.3V
- Dual CC1101 - ISM transceiver one fix tuned for 868MHz, one socket for additional CPM
- SMA sockets
- built-in Serial-2-USB bridge (CP2101)
- (opt) ENC28J60 ethernet
- (opt) Power-over-ethernet (PoE)
- (opt) ext. 2MB data flash
- (opt) ext. 8MB SDRAM
- two dual-color multi purpose leds
- MiniUSB / RJ45 sockets
- serial bootloader
- JTAG connector
Documents
- ISM-Transceiver CC1101
Software
- AtXmega serial Bootloader - to enable ie. avrdude uploads using serial link
