CC1101 based UART
This module has been superseded by CSM-RADINO

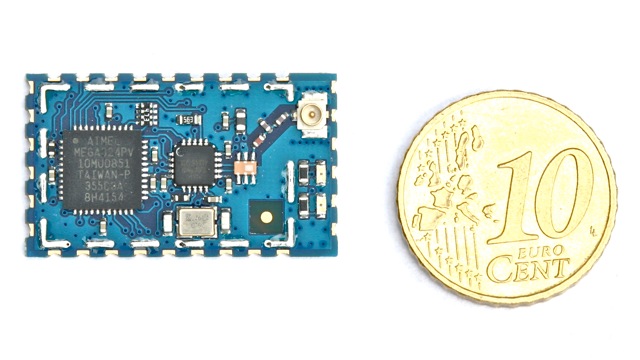

General
This module is intended to be used in other host systems, just providing an serial (UART) link with high level access to air data.
Specs
- 3.3V operation
- CC1101 transceiver tuned for 868MHz
- ATmega1284p@8MHz - 128K Flash / 16K RAM / 4K EEPROM
- optional U.FL antenna connector
- optional HF shield
- two multipurpose LED
- dimensions: 28mm x 16.5mm x 2.8 mm
- pin compatible with 800/2400MHz IEEE802.15.4 radios
- shipped with avr109-bootloader@38400Baud (pull pin 6 (PD3) LOW during startup)
Documents
- Schematics & Placement
- ISM-Transceiver CC1101

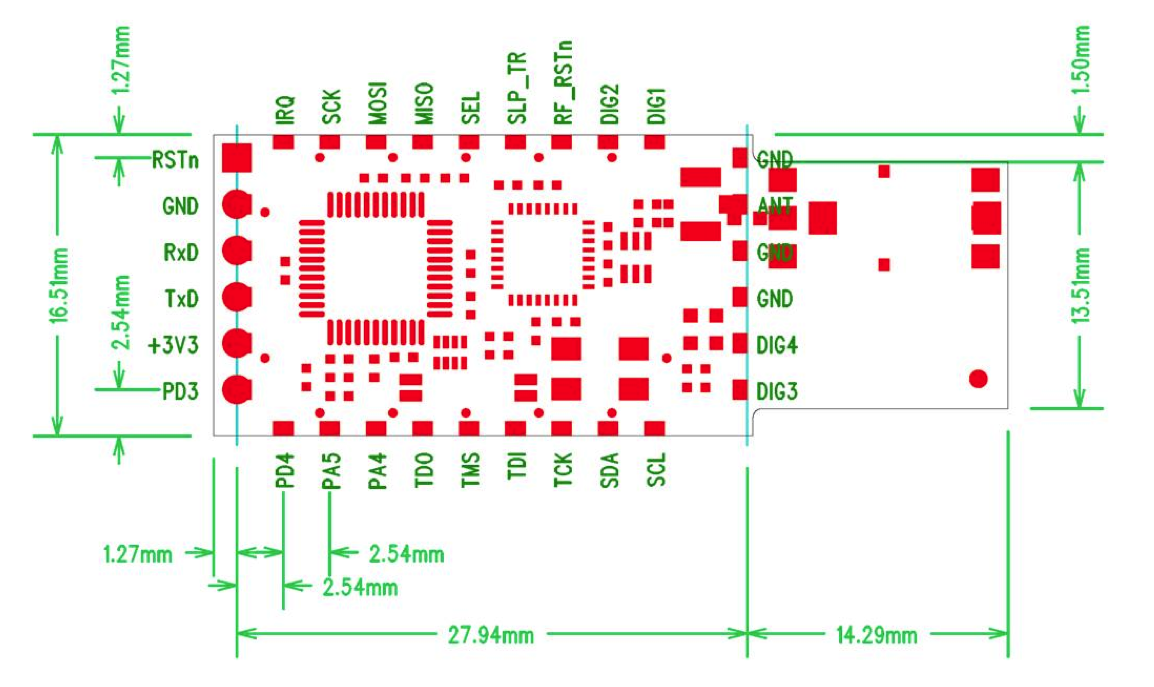

- pinout

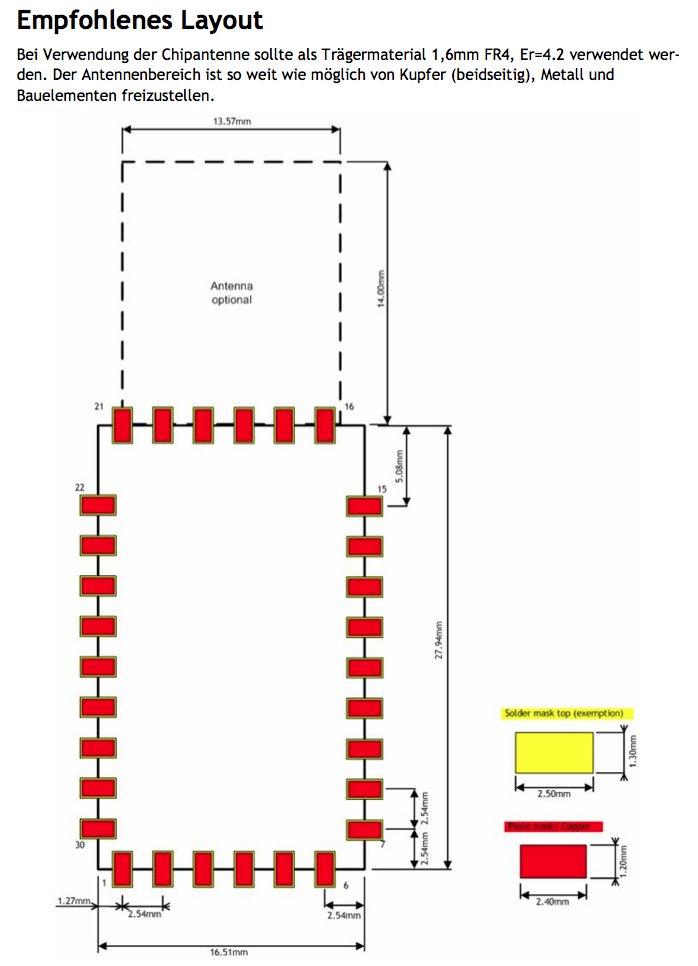

- foot print
Application
- ARDCSM - Arduino shield
3nd party firmware projects
- culfw - FHEM support for FS20 / FHT / EM / HMS / MAX! / Homematic protocols
Availability/Price
This module is no longer available in our shop
