ARDCSM ARDCSM

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

This shield allows you to control all actors and sensors of either FS20, MAX!, Homematic, etc. - supported by http://culfw.de

CC1101 w/ co-processor shield for Arduino

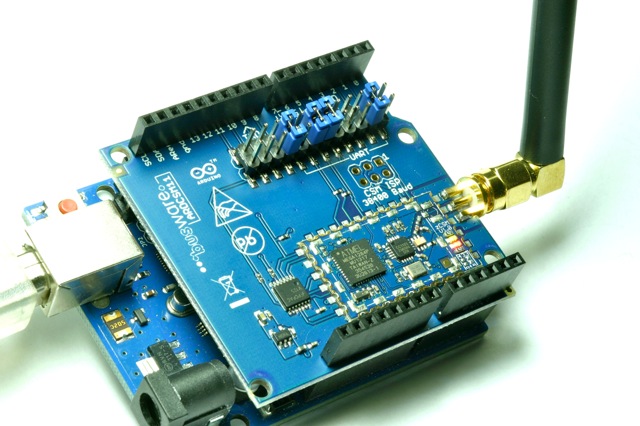

mounted shield with RP-SMA socket and antenna

General

End-Of-Life This shield allows you to control all actors and sensors of either FS20, MAX!, Homematic, etc. - supported by http://culfw.de

Specs

direct mount onto UNO/MEGA w/ sandwich connectors
CSM m1284p, CC1101@868MHz with culfw - optional ISP header
using serial communication by either Soft- or Real-UART port selectable by jumpers (RX at digital pins 8,9,10,11 - TX at digital pins 2,3,4,5)

Sketches

Demo sketch (as below)

Application

simple command forward

Availability

The shield is no longer available in our shop
