This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
This universal transceiver module is as small as an Atmel ATTINY84 in a DIL14 package. Why an AVR ATTINY? Because the module can optionally carry this controlle
Universal CC1101 module (CM/CPM)
General
see CSM instead

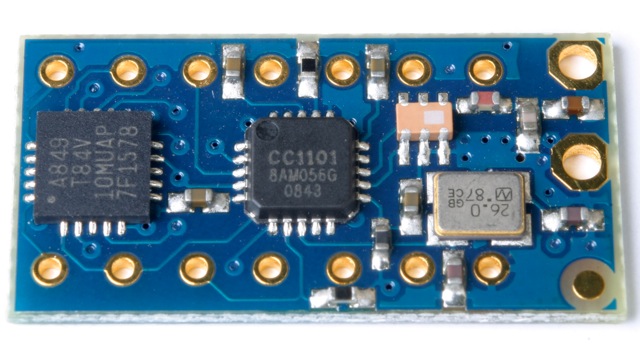

This universal transceiver module is as small as an Atmel ATTINY84 in a DIL14 package. Why an AVR ATTINY? Because the module can optionally carry this controller. So you are free to utilize the CC1101 directly with your own SPI-enabled controller or you may program the onboard ATTINY to your needs - using its I/O.
Specs
- DIL14 ATTINYx4 footprint
- CC1101 transceiver tuned for 868MHz or 433MHz
- onboard ATTINY84 processor
- 3.3V
Documents
- CPM Schematic
- CPM pinout / component placement
- CPM symbol
- ISM-Transceiver CC1101
- CPM-Host Schematics
Availability/Price
This module is no longer available in our shop - see CSM instead
Application

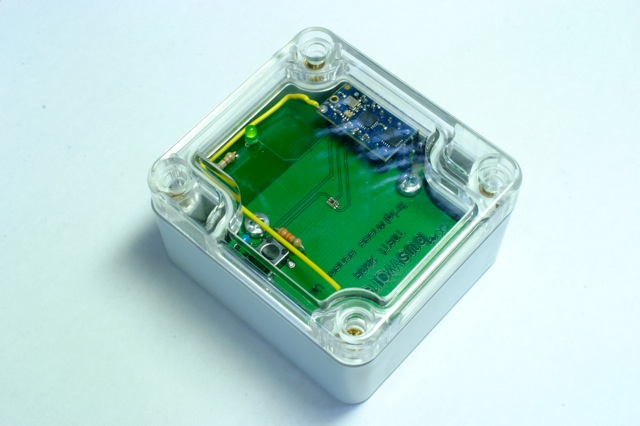

* Brightness sensor:

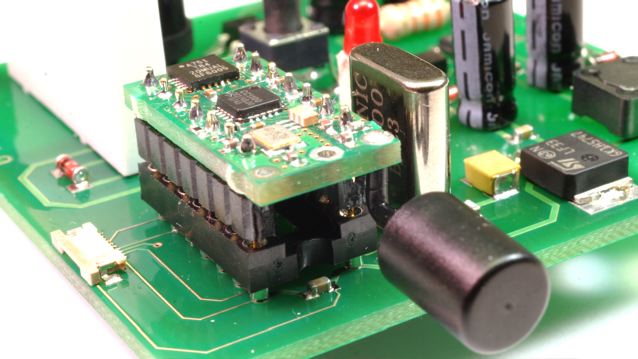

* Wireless switch:
