4S0ETH 4S0ETH
Archive — discontinued
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
Previous Logger Version 3 pages
4 channel S0-data logger with embedded Linux core
Previous Logger Version 3 pages
General
see SD0 instead
Specs V5.1
- 4 x S0-interface after DIN 43864 EN 62053-31
- Input 5V DC - 3 Watt (2A Peak)
- TuxRail V2 processor board:
- i.mx233 cpu - 450MHz
- 64MB DDR RAM
- 4GB SSD (microSDHC)
- 10/100 Base-T ethernet
- dual USB 2.0
- buffered RTC with NVRAM
- multiple leds, switch

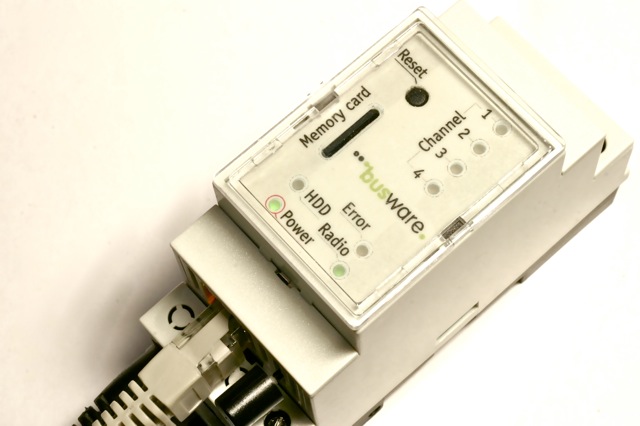

- fits into 2TE DIN rail case
- optional: 433/868/2400 MHz radio socket - see: CSM
- optional: UMTS/HSDPA/GPRS interface
- optional: WLAN interface (ie: EW-7711 series)
- optional: USB Memory
Documents
- Schematics
- Placement top
- Placement bottom
- Webinterface commands
- How to prepare a microSD card: Read this

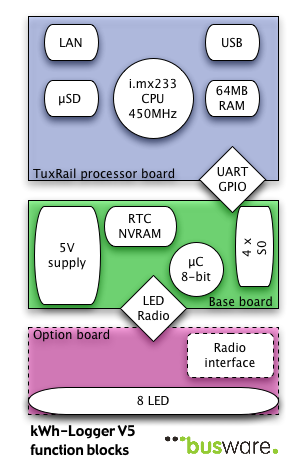

- Functional overview:
supported devices
- Electricity: Power meters with S0 Interface
- Water: Flow meters with Reed-contact
- Radio power meters (with optional radio modul installed) - series: EM1000 and ESA
OS
- full featured Debian Squeeze - Linux 2.6.31

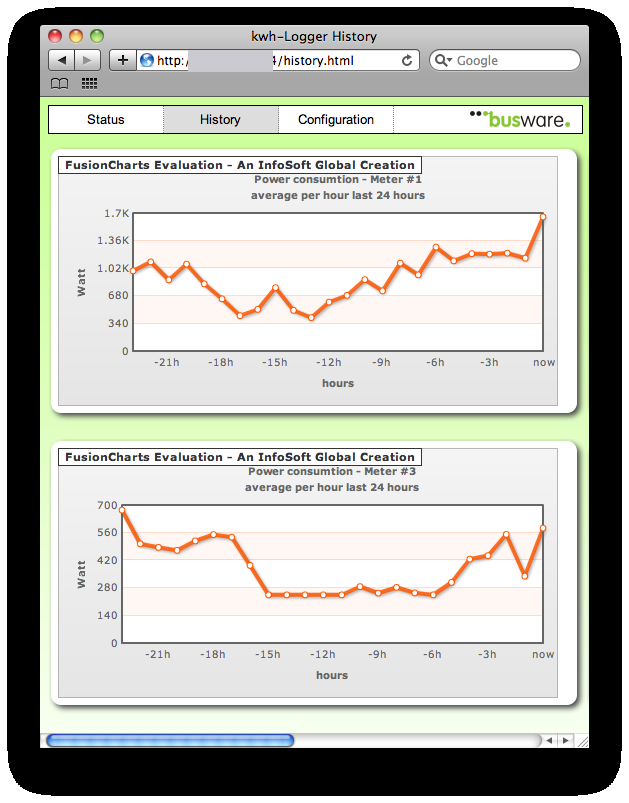

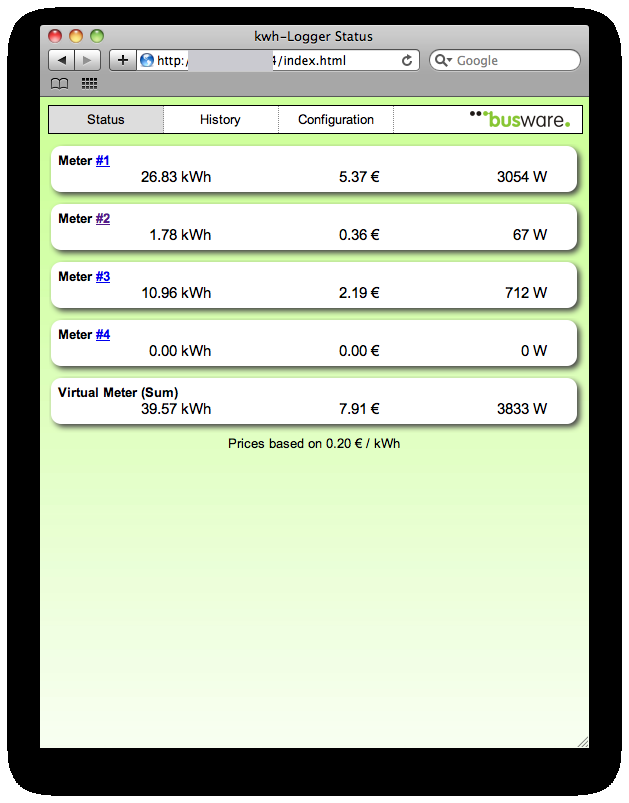

Screenshots
This simple demo is included when shipped.
Availability/Price
MOQ: 50 - B2B sale only - lead time: 6 weeks
Third party software - http://www.s0control.de/
This software is going to be installed directly at the logger. There is no additional PC required. You access this frontend using an ordinary web browser.

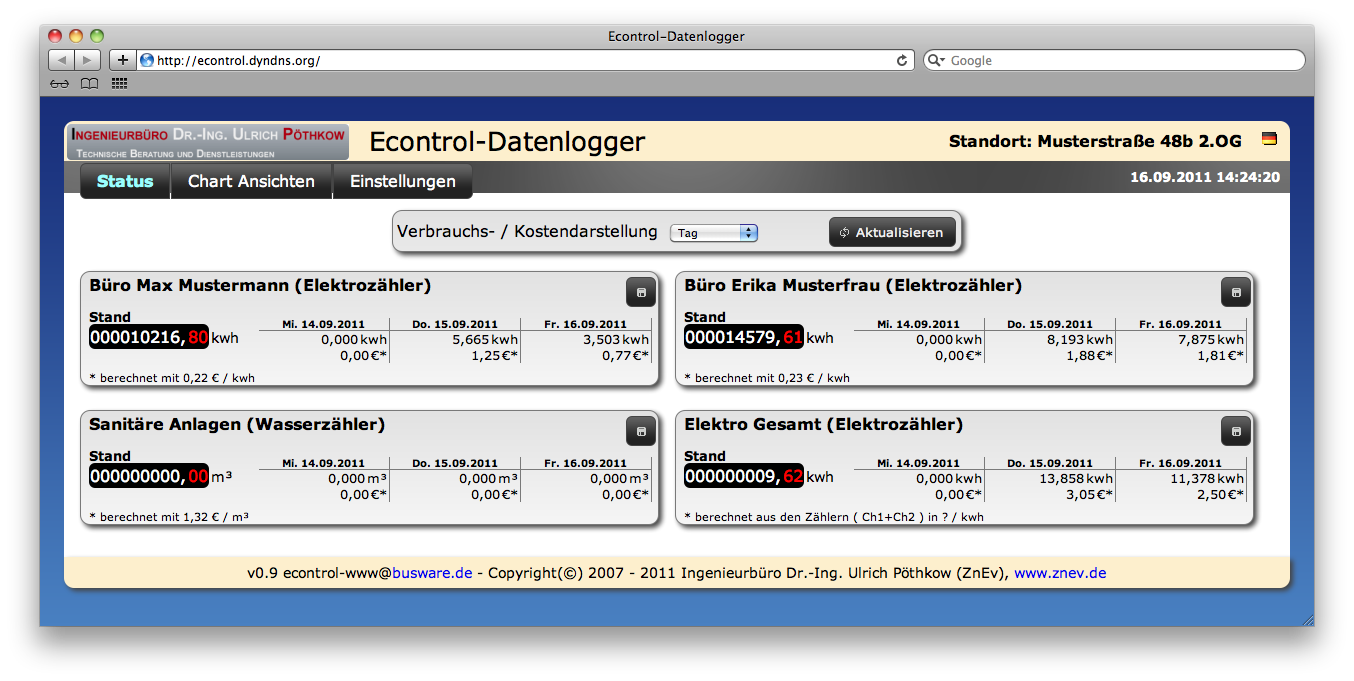

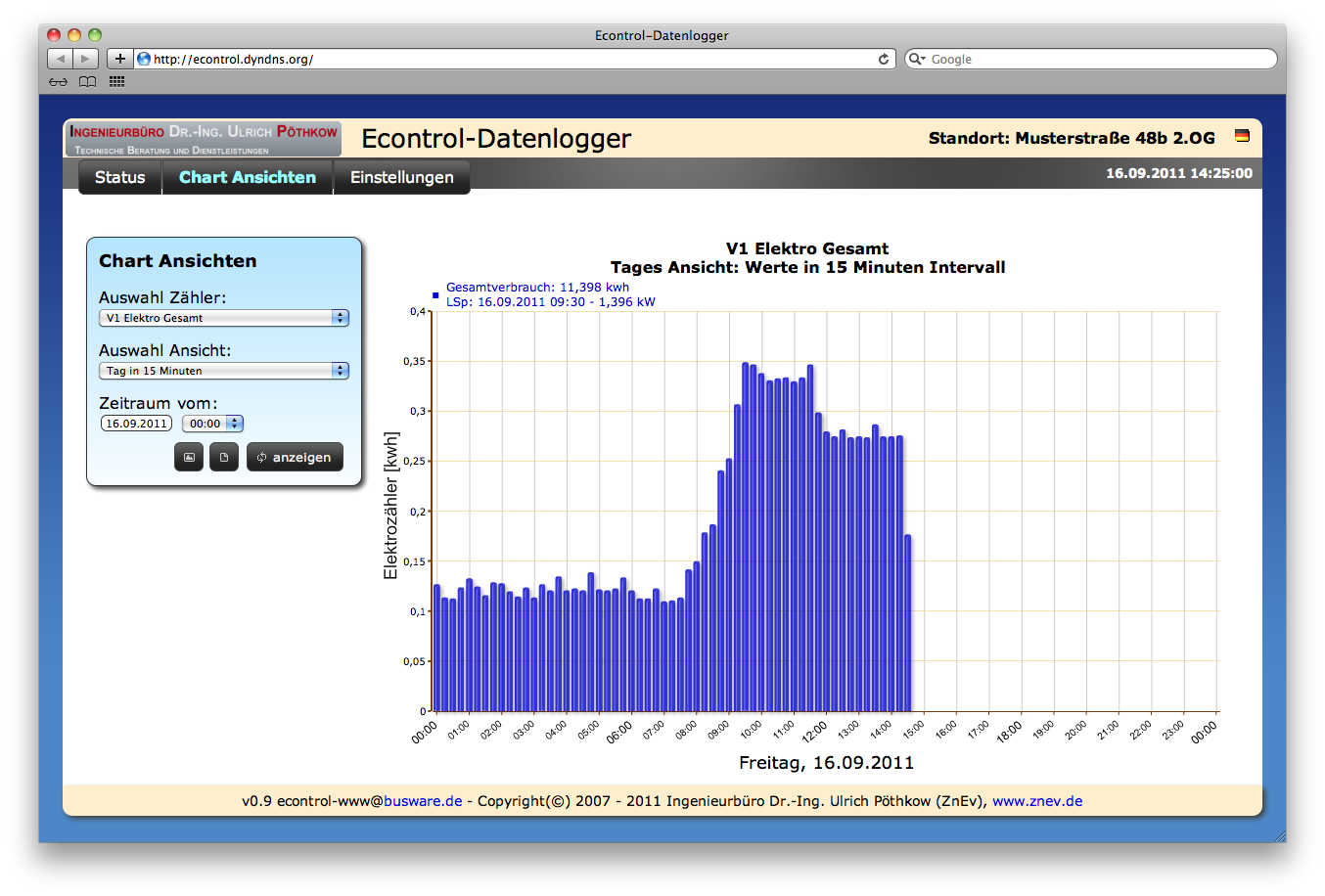

Live demo (in Kiosk mode)
- Basic Version -> http://s0control.dyndns.org
- HTNT Version -> http://htnt-demo.s0control.dyndns.org
- Usermode Username/Password: user/user
- Adminmode Username/Password: admin/admin
- Manual
Please contact Ingenieurbüro Dr.-Ing. Ulrich Pöthkow (ZnEv), s0control@znev.de for inquiries directly.
