SD0 - a 4xS0+1xD0 smart meter reading extension for Raspberry Pi

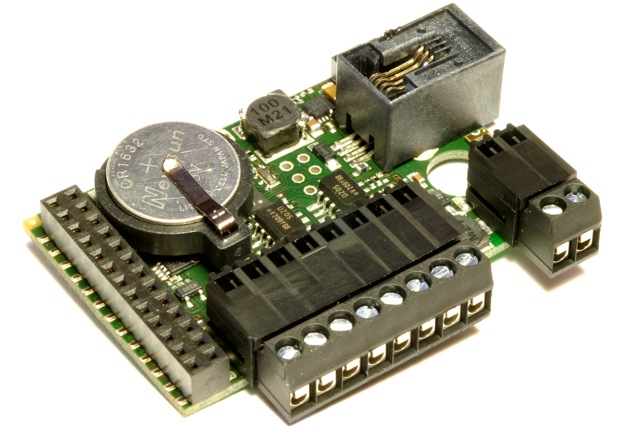

extension board (with all options)

General

This product is under review to fit onto B+ models in near future …

Specs

direct mount onto Raspberry Pi module B
2kbit EEPROM @ I2C
DS1338 RTC & NVRAM @ I2C - with 220mF SuperCap or CR16XX backup
4 x S0-interface according to DIN 43864 / EN 62053-31
1 x serial port 3.3V @ RJ10 to connect IR-head according to DIN EN 62056â21 (or Ferraris head)
on-board co-processor m1284p for data collection and pre-processing @ ttyAMA0
4+1 LED (optional)
PSU connector (optional)
wide range switching voltage regulator 6-36V (optional)
PWM fan driver @ GPIO18 (optional)
fitting enclosure (optional)

Documents

basic installation guide
SD0 V1.1 schematics

Firmware examples & development files

3rd party application

s0control - professional frontend with support
