IRH - Infrared Reading/Writing Head

prototype

General

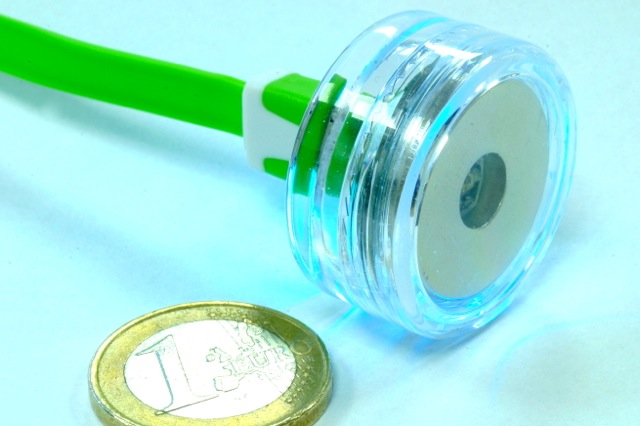

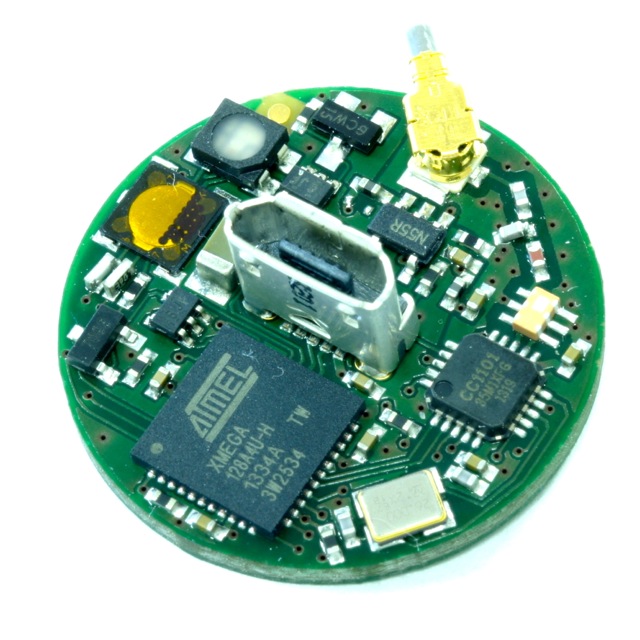

This reader combines a IR transceiver, CC1101 based radio and powerful xmega with native USB support.

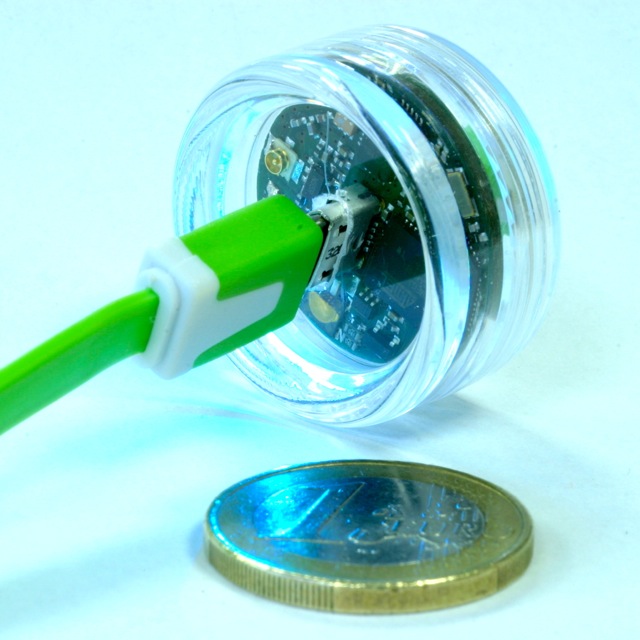

The mirco-USB cable is directly plugged into the IRH and powers it.

The CC1101 radio connects to a U.FL/IPEX socket.

see:

image gallery

Specs

800-900nm IR receiver / transmitter
CC1101 radio frontend (433/868/915MHz)
ATXMEGA128A4U
microUSB socket
RGB-LED
Microswitch
DFU bootloader
ring magnetic front
transparent acryl housing

Firmware

use: web browser-based Firmware Installer

USB-serial emulation:

goto Firmware Installer page - and choose "USB-serial emulation for TCM515 (EUL)"
example source code: serial transparent example

Tasmota Smart Meter Interface:

goto Firmware Installer page - and choose "Tasmota for busware gadgets"
follow regular Tasmota setup procedure
finally goto "Auto-configuration" and choose "Busware IRH" from dropdown
example script for EasyMeter?

>D >B =>sensor53 r =>sensor53 l4 >M 1 +1,20,o,0,9600,SML,1 1,1-0:1.7.255*255(@1,P_in,W,P_in,18 1,1-0:21.7.255*255(@1,L1,W,L1,18 1,1-0:41.7.255*255(@1,L2,W,L2,18 1,1-0:61.7.255*255(@1,L3,W,L3,18 1,1-0:1.8.0*255(@1,E_in,kWh,E_in,19 1,1-0:2.8.0*255(@1,E_out,kWh,E_out,19 1,1-0:0.0.0*255(@1,Netzbetreiber-ID,,NetID,0 1,0-0:96.1.255*255(@#),Seriennummer,,serial,0 #
