EUL - EnOcean? USB light - TCM310

General

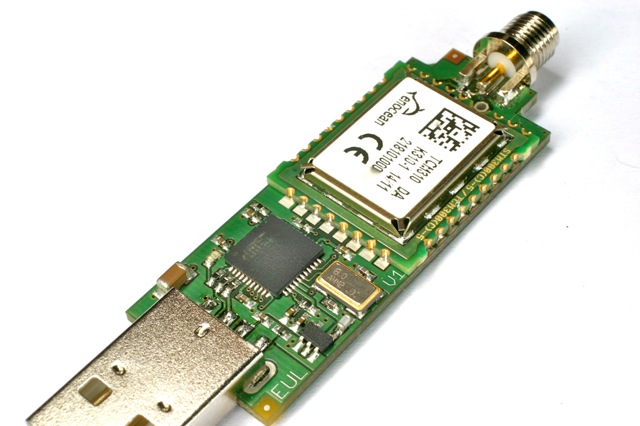

This module glues an EnOcean? TCM310 transceiver to USB 2.0. The freely programmable microcontroller allows any kind of USB device favours. This hardware is not just a serial-USB-bridge as many other EnOcean-USB-devices?.

Have a look at this modules Image Gallery

Specs

• TCM310 connected to USART of:
• ATmega32u4 @ 8MHz
• USB A male connector
• Whip or SMA antenna
• green LED
• dfu-bootloader - allows flashing firmware by using USB
• optional: plastic case

Documents

• TCM 310 – transceiver module
• Atmega32u4 manual

Firmware

• USB2TCM.hex - This will allow native access to TCM310 providing an emulated serial port (CDC ACM) on host PC
  • @Windows: use this LUFA_USB2TCM.inf - Other OS will have native drivers.
  • sources
• How to flash this device:
  • locate the PROGRAM button at the back of the module
  • keep it pressed while plugging the module in
  • run:

• optionally you may run: make dfu

Price and availability

This module is no longer available
