Dual CC1101 with USB & Network - DCUN

Dual CC1101 transceiver with USB & Network (Shields/IR/RTC/Flash parts not soldered yet)


This project has moved to CCX ...




General

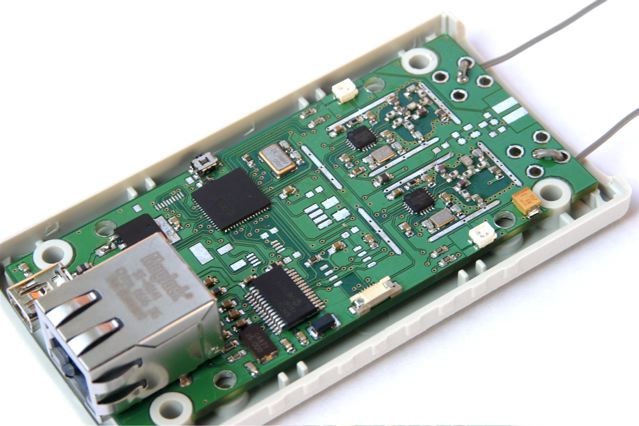

The early prototype of a dual ISM transceiver with Infrared, USB and Ethernet interface.

Have a look at this modules Image Gallery ...

Specs

  • AT90USB646/1286 processor 8MHz @ 3.3V
  • Dual CC1101 - ISM transceiver tuned for 868MHz and 433 MHz
  • SMA pinheaders
  • ENC28J60 Ethernet
  • ext 2MB data flash
  • buffered Real Time Clock
  • 950nm IR led and 38kHz IR receiver
  • two dual-color multi purpose leds
  • MiniUSB / RJ45 sockets
  • JTAG and ISP connector

Created by: tostmann last modification: Sunday 24 of May, 2009 [23:04:10 UTC] by tostmann
