CUNO V1 - CC1101 USB Network Onewire

This version is outdated - click here for current version!

featuring:

• CSM-Radio - m644 cpu with 868/433 MHz radio (or equivalent Zigbee module)
• USB - MCP2200 (ACM)
• OneWire? host DS2482 @ RJ10 - 4p4c
• Ethernet - ENC28J60 with PoE option
• MicroSD connector
• bootloader switch
• 3x multi purpose led
• MiniUSB / RJ45 sockets
• 6ISP connector
• RP-SMA edge-pinheader
• powered over USB or Ethernet
• plastic housing available

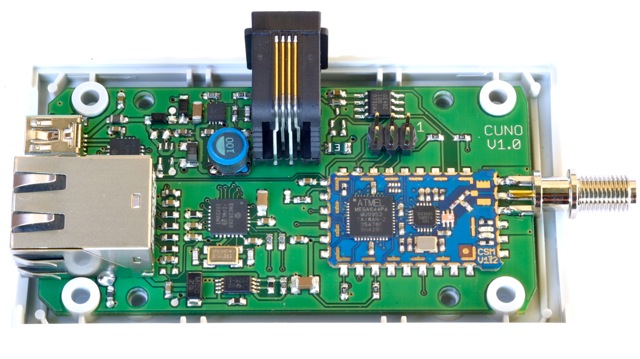

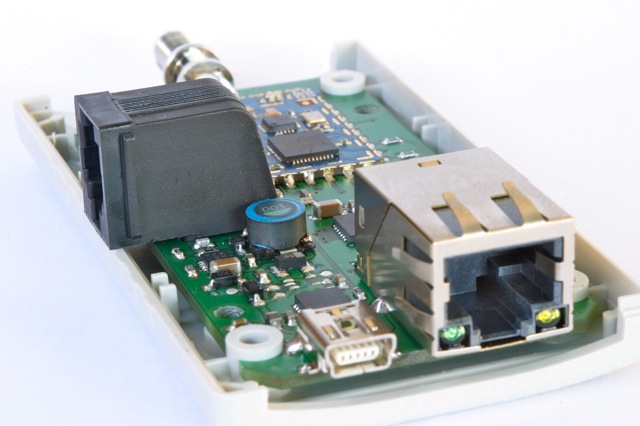

Have a look at this modules Image Gallery

Documents

• Schematic
• OUI mask for CUNO is: A4-50-55-00-1x-xx

Onewire

Front view plug / Stecker von vorn

3-yellow (+3.3V fused) / 4-green (OW return) / 5-red (OW) / 6-black (GND)

Application/Software

in progess ....

3nd party firmware projects

• FHEM support for FS20 / FHT / EM / HMS protocols

Availability

This module is no longer available. Check next generation CUNO!

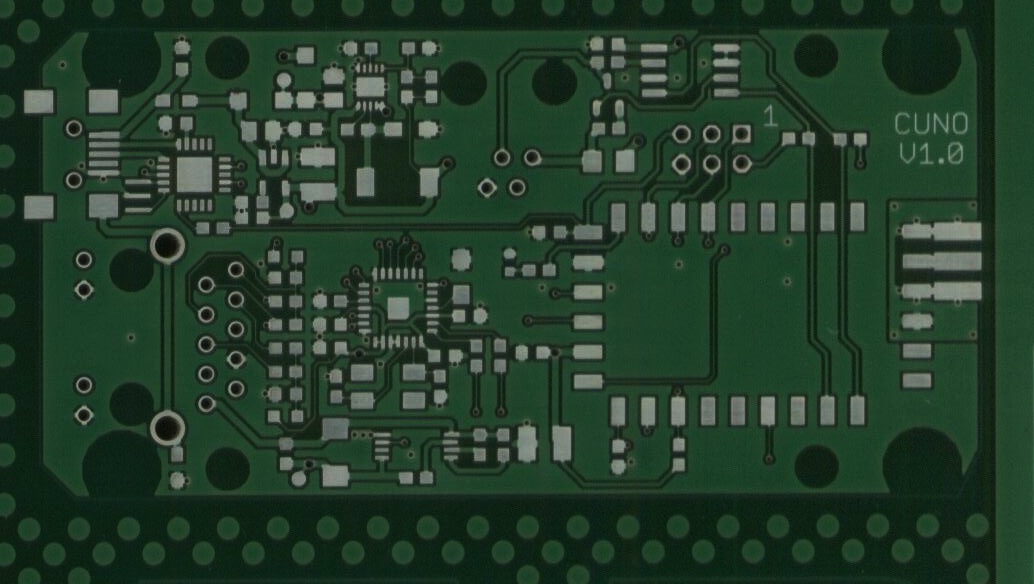

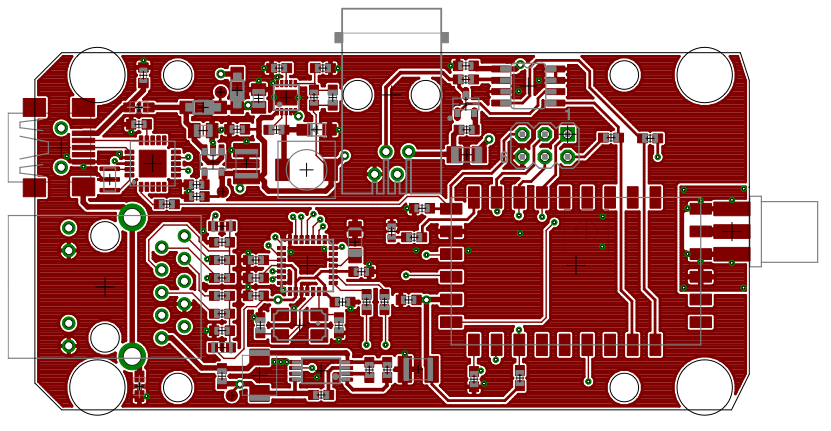

Prototyping stages:
