TuxRadio-V1 TUXRADIO-V1
Archive — discontinued
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
Click here for: more images

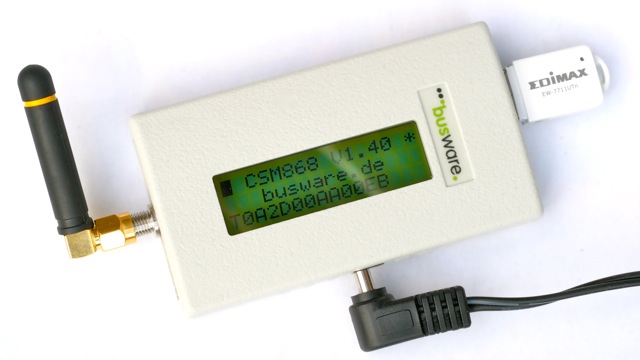

TuxRadio version 1 - Linux & SRD radio
Spec
- i.mx233 ARM9 - 450 MHz
- 64MB DDR RAM
- microSDHC HDD 2+ GB allowing full featured Debian to run
- CSM 868MHz radio module
- USB host for WLAN, Ethernet or UMTS/HSDPA connectivity
- 3x16 LCD display with back light
- Infrared receiver
- AV socket - Stereo Audio out / TV out
- plastic housing - smaller than a cigarette pack
- 5V/2A power supply
- avg. power consumtion 2 watts
- socket for serial debug console
Software/Sources
- Debian (Squeeze) - Minimal Root-FS
- special pre-compiled packages: ** fhem - perl server for house automation ** shairport - Airtunes emulator
Documents
Price and availability
The base model is no longer available in our shop.
Prototyping stages:
