RUX RUX
Archive — discontinued
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
This small USB stick is aimed for connecting to any kind of RS485 bus with on-board processor, isolated!

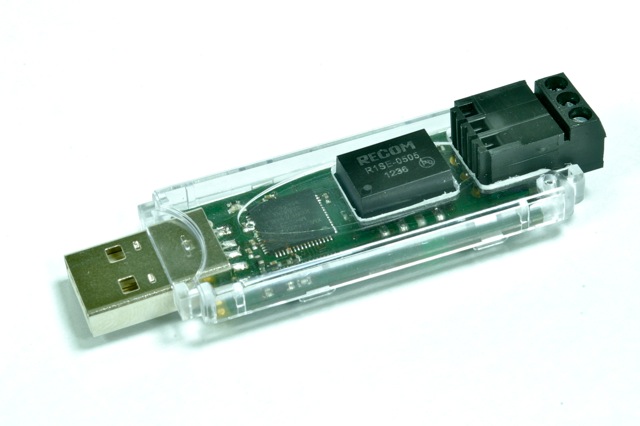

RUX - isolated RS485 USB stick with Xmega-MPU
General
This small USB stick is aimed for connecting to any kind of RS485 bus with on-board processor, isolated!
Specs
- freely programmable ATXMEGA256A3U MPU w/ dfu-bootloader (dfu-programmer 0.6.2+ required)
- isolated high speed RS485 bus interface
- 4000-VPEAK Isolation, 560-Vpeak VIORM â UL 1577, IEC 60747-5-2 (VDE 0884, Rev. 2),
- IEC 61010-1, IEC 60950-1 and CSA Approved
- Half-Duplex up to 20 Mbps
- 1/8 Unit Load â Up to 256 Nodes on a Bus
Firmware
- transparent CDC_ACM USART - 2.4 up to 460.8 kBaud
Availability
This stick is only available in MOQ 50 on email request.
