RF69USB RF69USB
Archive — discontinued
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
This module glues an RF69 (RFM12B compatible) wireless radio transceiver module to USB 2.0.

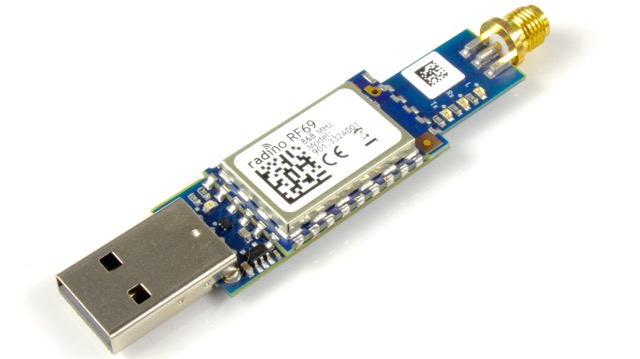

RF69 USB light - Stick
General
This module glues an RF69 (RFM12B compatible) wireless radio transceiver module to USB 2.0. The module is Arduino-Leonardo compatible. So you may use Arduino IDE to program it.
The radio itself is internally connected alike:
//RFMxx::RFMxx(byte mosi, byte miso, byte sck, byte ss, byte irq) { RFMxx rfm(16, 14, 15, 8, 7);
Specs
- RFM69W
- ATmega32u4 @ 8MHz
- USB A male connector
- Whip or SMA antenna
- dual LED
- Arduino bootloader - allows flashing firmware by using USB
- optional: 2x3pin 100mil ISP feature connector
- optional: plastic case
Documents
Firmware
Price and availability
This module is no longer available in our shop
