The small device glues a RFM9X-LoRa-Module and ESP8266 WiFi-SOC into a single channel paket forwarder to TTN or similar.
LoRa-USB-WLAN - LUW
General

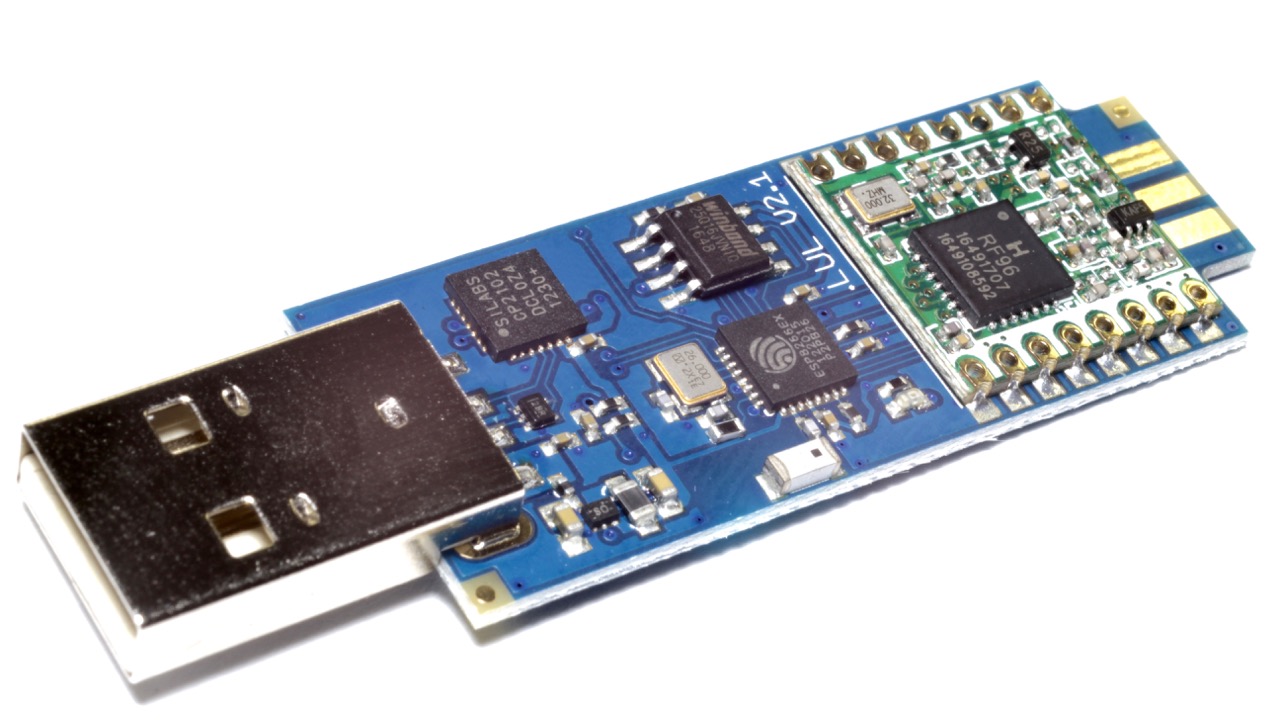

The small device glues a RFM9X-LoRa-Module and ESP8266 WiFi-SOC into a single channel paket forwarder to TTN or similar. The ESP is accessible through onboard USB-Serial-bridge.
Specs
- RFM95 module or similar
- ESP8266 SOC
- 2.4GHz WIFI 802.11b/g/n
- 2MB Flash
- serial SOC access via CP2102 USB bridge
- PRG-button to enter flash mode
- Status LED on GPIO2
- plastic enclosure
Documents
- LUW21.pdf - schematics
Implementations/References
- https://github.com/esp8266/esp8266-wiki/wiki - Arduino for LUW
- https://github.com/JaapBraam/LoRaWanGateway - Single channel gateway to TTN using NodeMCU/Lua
Availability
This unit is available in our shop
