There are several versions of LUFA test boards:

LUFA test boards

There are several versions of LUFA test boards:

ATmega32U4

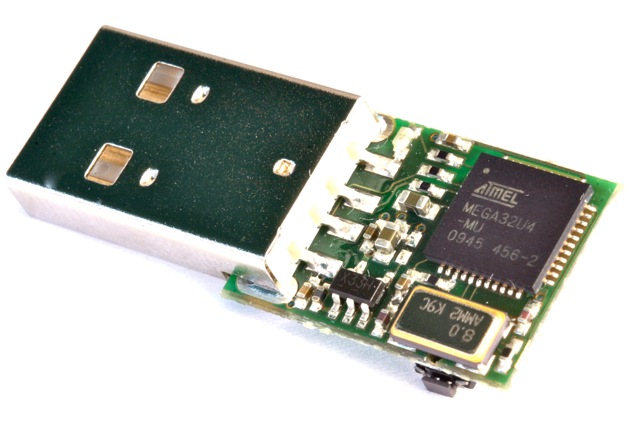

USB stick board with its Atmel controller, case removed

Schematic
available in our shop
Normally covered in Polyolefin shrink tubes - no hard case available
8MHz
LED is at PE6 - non inverting

LUFA makefile settings:

MCU = atmega32u4 BOARD = CULV3 F_CPU = 8000000

AT90USB162 - CUL433 based

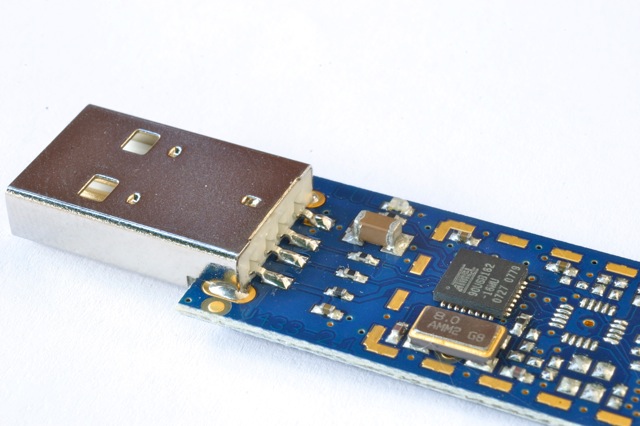

USB stick board with the type-A plug attached

Schematic
no longer available in our shop
Normally covered in Polyolefin shrink tubes - no hard case available
8MHz
LED is at PC4 - non inverting

AT90USB162 - CULV21C based

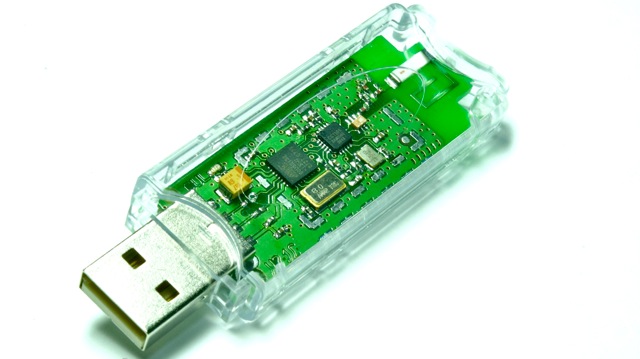

USB stick in a transparent case with the board visible

Schematic
no longer available in our shop
hard case available
8MHz
LED is at PC4 - non inverting
