Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

You can use the TUL V3 directly with platforms like Home Assistant. Thanks to OpenKNX stack, the device functions as a wireless KNX/IP coupler over Wi-Fi. This

TUL V3 (ESP32) with KNX/IP for Wireless Home Assistant Integration

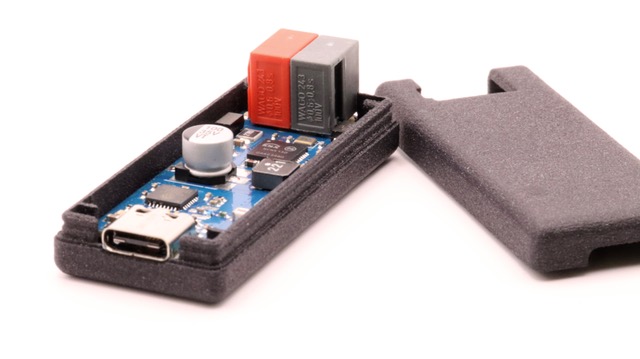

TUL V3.1 with housing

You can use the TUL V3 directly with platforms like Home Assistant. Thanks to OpenKNX stack, the device functions as a wireless KNX/IP coupler over Wi-Fi. This eliminates the need for a separate knxd installation. Simply place the TUL V3 within your Wi-Fi coverage area and connect it to the KNX TP bus.

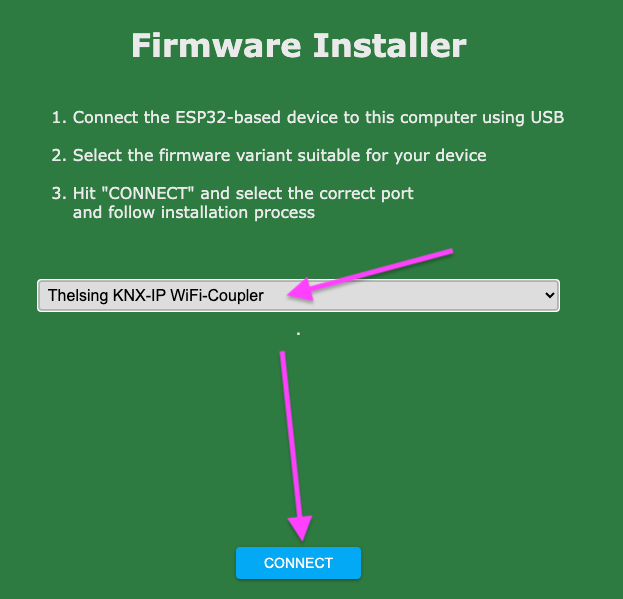

** find example here on github ** goto TUL-Firmware Installer page - and choose “KNX/IP for TUL”

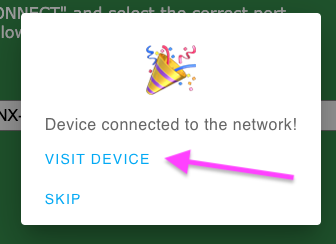

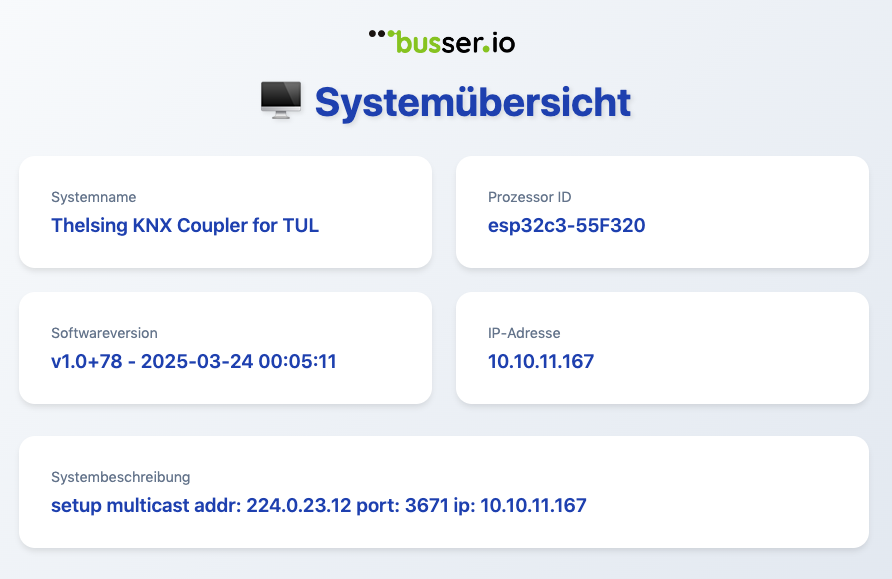

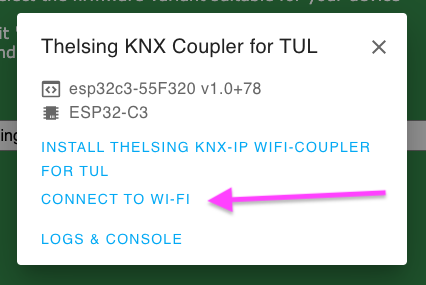

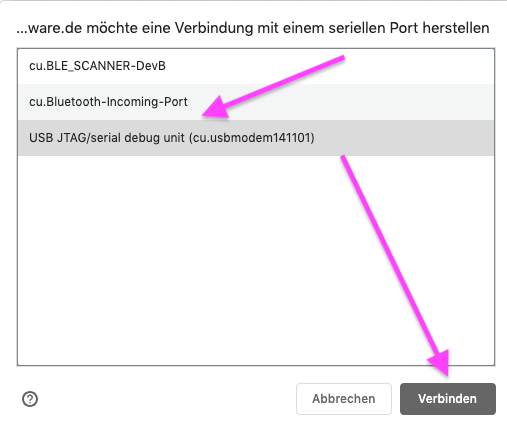

select select select select find the TUL's ip address in case you need to setup UDP tunnel manually

** Move on to Homeassistant and continue common KNX installation.

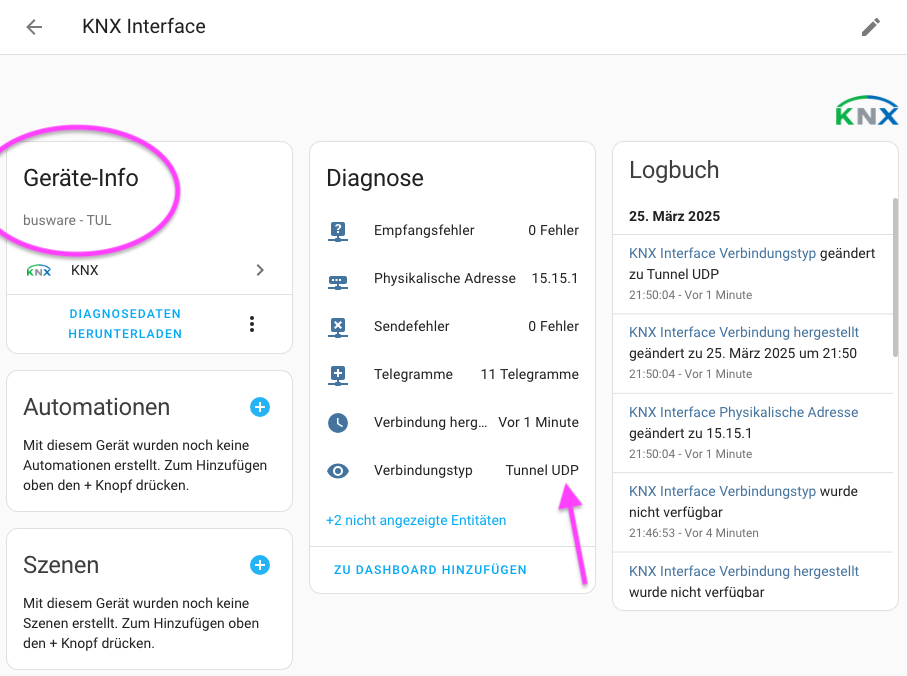

Status

References

** excellent OpenKNX stack ** Implementation for TUL on github
