This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
This module has been discontinued - see new version

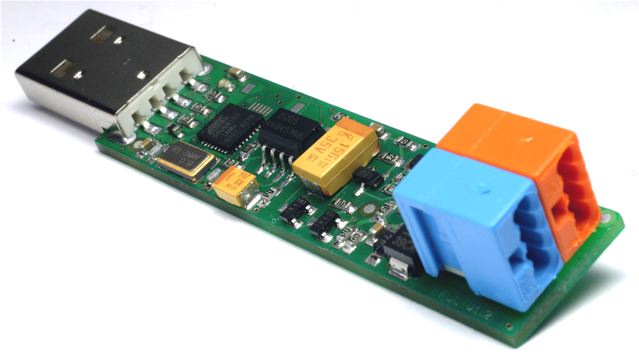

Freebus to USB module
This module has been discontinued - see new version
General
This small module will give you access to Freebus. The on-board Atmel AVR will handle the native USB link to the host PC and the fieldbus protocol. The module is optical isolated and powered by USB. It ships with a DFU-bootloader. Use dfu-programmer to upload new firmware. Alternately you may solder an 6FPC-pinheader and use serial ISP programming.
Specs
- signaling according to ISO/IEC 14543-3
- Controller: Atmel AT90USB162 - 8MHz @ 3.3V
- Isolation voltage: 4000 Vrms (BUS/USB)
- Microswitch, green LED
Documents
Availability/Price
This modules PCB is available in our shop
Demonstration firmware

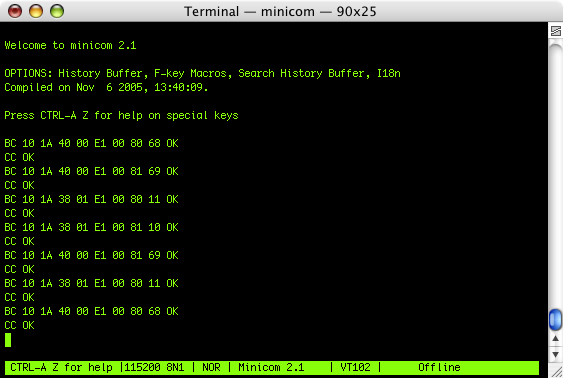

- USBSniffer.hex (15.6 Kb) - Simple freebus message dumper:
- TP-UART-Sim.hex (11.72 Kb) TP-UART emulation (currently: bus read only): This will enable you to use FUL-module with any software having drivers for serial TPUART protocol (like eibd)
~# eibd -i -t 100 tpuarts:/dev/ttyACM0 Layer 2(080A6668,498E0ADF) Open Layer 2(080A6668,498E0ADF) Openend Layer 2(080A6668,498E0ADF) open-reset(001): 01 Layer 2(080A6668,498E0ADF) Watchdog Status(001): 02 Layer 2(080A6668,498E0AE1) Recv L_Data low from 1.0.26 to 8/0/0 hops: 06 T_DATA_XXX_REQ A_GroupValue_Write (small) 01 Layer 2(080A6668,498E0AE2) Recv L_Data low from 1.0.26 to 7/0/1 hops: 06 T_DATA_XXX_REQ A_GroupValue_Write (small) 01 Layer 2(080A6668,498E0AE3) Recv L_Data low from 1.0.26 to 7/0/1 hops: 06 T_DATA_XXX_REQ A_GroupValue_Write (small) 00 Layer 2(080A6668,498E0AE7) Close
FUL module does not require any special driver to run under Linux or MacOS. For Windows use this FUL.inf (1.38 Kb) How to load this/new firmware | Source code
Links
- FREEBUS.ORG
Recommended tools/software
- avr-gcc
- dfu-programmer
- LUFA (MyUSB) - open source USB stack (for ie. serial communication)

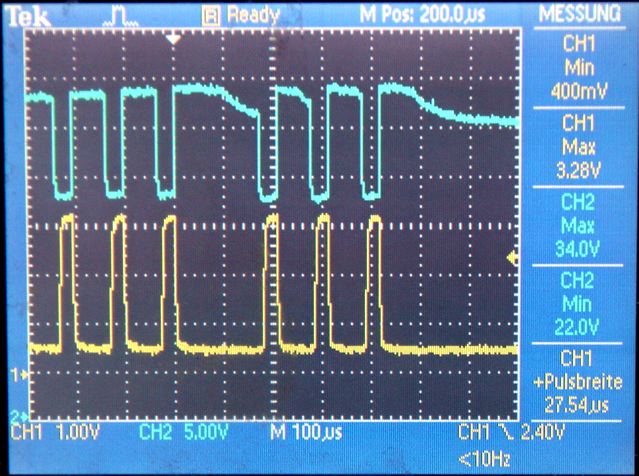

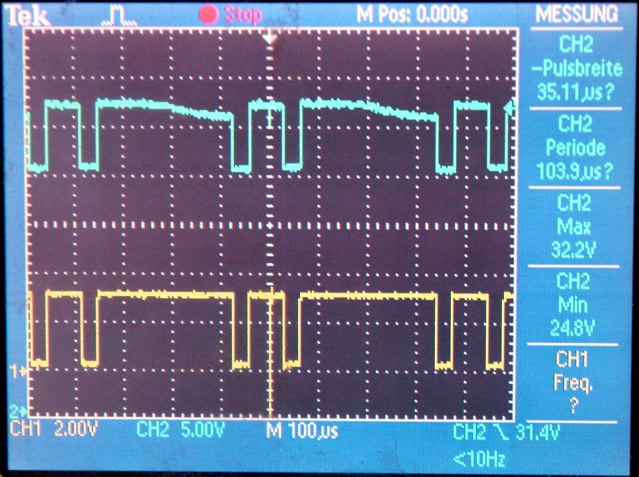

Signal processing (click them for higher res)
|| Sender:|Receiver:
|
||
