CC1101 - USB - Remote
General

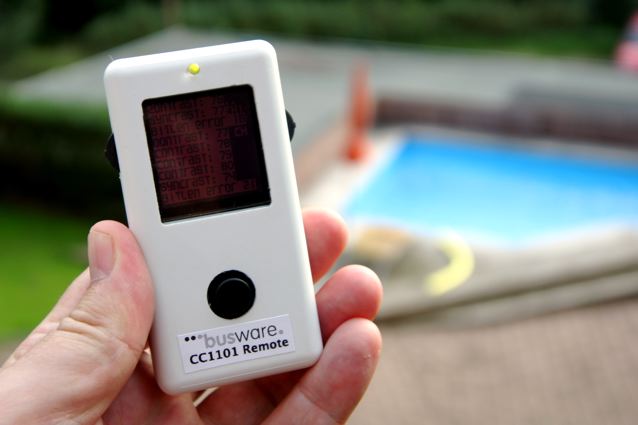

This remote looks a bit like a mobile phone, in fact there are many similarities. The front is occupied by a 132x132 full color display with background light. Below, for navigation, a mini joystick. Above the display a multi purpose green LED. To make navigation more flexible you have a three-way-jogdial at each side. A mini USB connector is located at the bottom. This can be used to charge the internal Li-Ion battery and (obviously) exchange data with the remote.
Specs
- AT90USB646/1286 processor 8MHz @ 3.3V
- CC1101 - ISM transceiver tuned for 868MHz
- 1/4 wave micro antenna
- Li-Ion/Polymer battery incl. charger via USB
- 2MB data flash
- 131x131 pixel RGB display with white background light
- buffered Real Time Clock
- 950nm IR led - 38kHz IR receiver
- 5-way mini joystick
- green multi purpose led
- MiniUSB connector
- JTAG and ISP connector
Documents
Firmware projects
- FHEM support for FS20 / FHT / EM / HMS protocols
