CUNO V1 - CC1101 USB Network Onewire

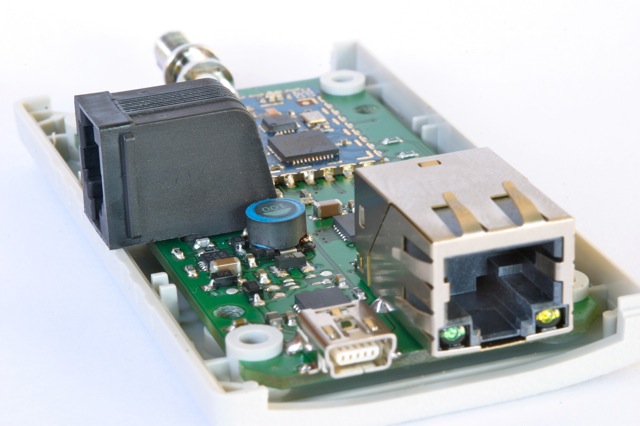

CUNO in its case with Ethernet jack and antenna connector

This version is outdated - click here for current version!

featuring:

CSM-Radio - m644 cpu with 868/433 MHz radio (or equivalent Zigbee module)
USB - MCP2200 (ACM)
OneWire host DS2482 @ RJ10 - 4p4c
Ethernet - ENC28J60 with PoE option
MicroSD connector
bootloader switch
3x multi purpose led
MiniUSB / RJ45 sockets
6ISP connector
RP-SMA edge-pinheader
powered over USB or Ethernet
plastic housing available

Documents

Schematic
OUI mask for CUNO is: A4-50-55-00-1x-xx

Onewire

Front view plug / Stecker von vorn RJ14-Steckerbelegung 3-yellow (+3.3V fused) / 4-green (OW return) / 5-red (OW) / 6-black (GND)

Application/Software

in progess …

3nd party firmware projects

FHEM support for FS20 / FHT / EM / HMS protocols

Availability

This module is no longer available. Check next generation CUNO!

Prototyping stages:

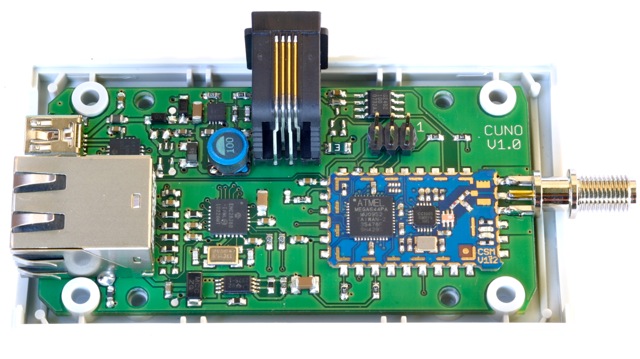

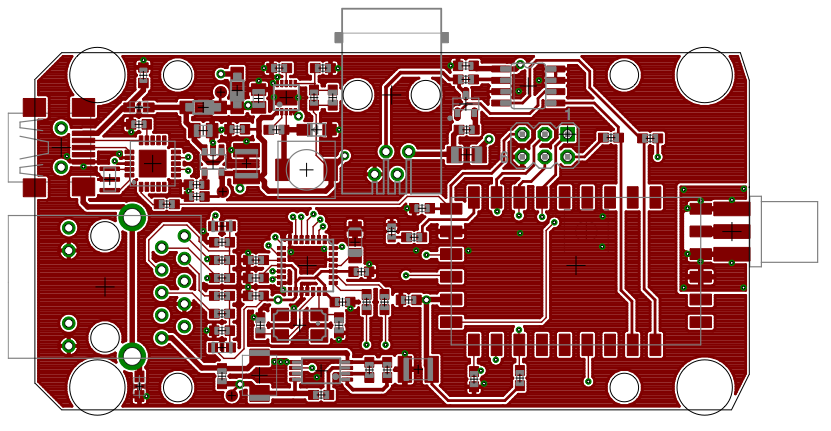

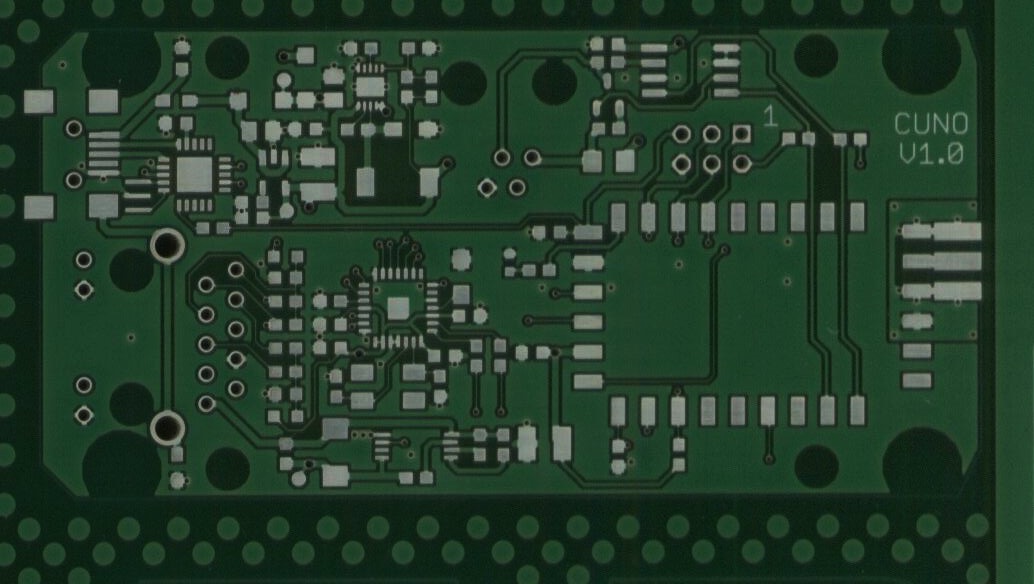

CUNO V1.0 circuit board layout CUNO V1.0 component placement drawing CUNO V1.0 in an open case, showing the RJ jack and the SMA antenna connector
