CUN-V1 CUN-V1

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

This module has retired - see CUNO for next generation!

CC1101 with USB & Network - CUN

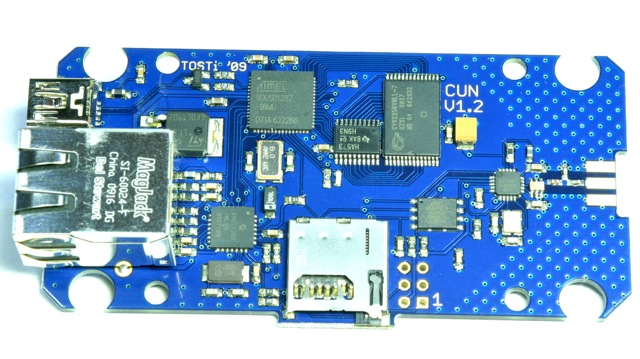

CC1101 transceiver with USB & Network (CUN) This module has retired - see CUNO for next generation!

General

End-Of-Life

CUN is a CC110x ISM transceiver with USB and Ethernet interface, MicroSD slot and additional memories.

Specs

AT90USB1287 processor 8MHz @ 3.3V
CC1101 - ISM transceiver tuned for 868MHz
RP-SMA edge-pinheader
ENC28J60 Ethernet
ext. 2MB data flash
ext. 32KB SRAM
MicroSD slot
bootloader switch
multi purpose led
MiniUSB / RJ45 sockets
ISP connector
powered over USB socket

Documents

Schematic
OUI mask for CUN is: A4-50-55-00-1x-xx

3nd party firmware projects

FHEM support for FS20 / FHT / EM / HMS protocols
Ethersex support How to load this/new firmware

Availability/Price

This module is no longer available in our shop. See its re-make: CUNO
