CSM-old CSM-OLD
Archive — discontinued
This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.
This module is intended to be used in other host systems, just providing an serial (UART) link with high level access to air data. Its I/O (VDD/RX/TX) can be co

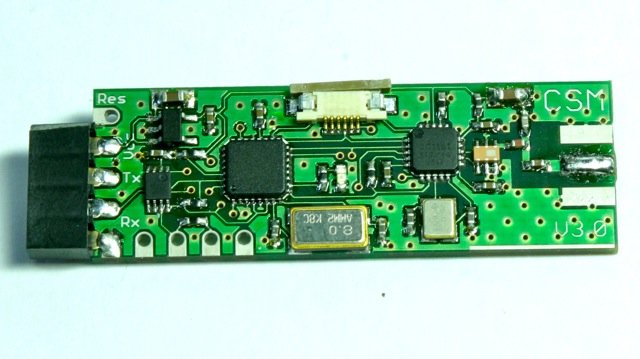

CC1101 based UART
General
This module is intended to be used in other host systems, just providing an serial (UART) link with high level access to air data. Its I/O (VDD/RX/TX) can be connected to 3.3V or 5V systems. A optional RESET line will allow the host system to force bootloader access for firmware upgrades.
Specs
- seamless 3.3 to 5.5 volt operation on all extern pins (VCC,TX,RX)
- CC1101 transceiver tuned for 868MHz
- ATmega88/168/328(P) @ 8MHz processor
- 3.3V core
- 6ISP (FPC) connector
- multipurpose LED
Documents
- ISM-Transceiver CC1101
Applications
- Pimp my LED ticker - make a LED ticker accessible wireless
3nd party firmware projects
- FHEM support for FS20 / FHT / EM / HMS protocols
Availability/Price
This module is no longer available in our shop
