The sensor board is aimed to collect several in-room data from its ceiling

Ceiling Sensor Board

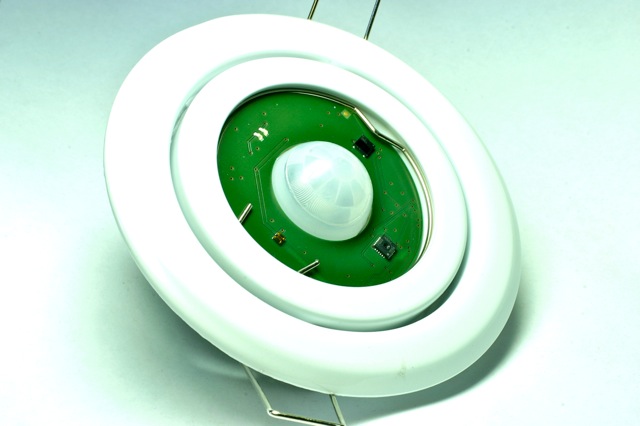

prototype sensor in frame

General

The sensor board is aimed to collect several in-room data from its ceiling

Specs

50mm design to fit as MR15 lamp replacement
m1284p processor @ 8MHz
CC1101 radio transceiver
RS485 interface @ RJ45 sockets
AC/DC supply 6..20V (there is NO battery option due to current consumption)

Sensors:

PIR
Temperature/Humidity
Brightness
Infrared Receivers sensor 38KHZ
Air pressure
IR transmitter 850nm
LED

Availability

The sensor will be available end of June in our shop.
