BUSSER2P BUSSER2P

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

This device gives access to two PIGATPOR modules. Main CPU unit is "Orange Pi Zero"

BUSSER 2P - Dual networked PIGATOR host

BUSSER2P can service two PIGATOR modules

General

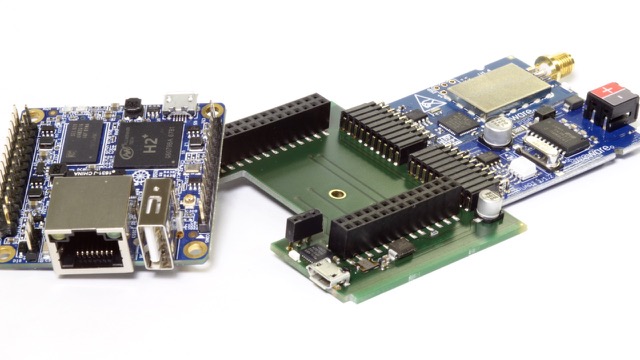

This device gives access to two PIGATPOR modules. Main CPU unit is “Orange Pi Zero” Orange Pi Zero is connected with several pinheaders

Specs

Usage (Armbian)

# FEX File für LED anpassen: leds_para] leds_used = 1 green_led = port:PA06<1><1> green_led_active_low = 0

# Knxd starten (assume PIM_TPUART in Slot 2): knxd -e 1.1.250 -E 1.1.251:254 -i -D -T -R -S -t65335 -b tpuarts:/dev/ttyS2

# was schalten: knxtool groupswrite ip:localhost 11/0/0 0

Layer 2(0149A128,583D8300) Send L_Data low from 1.1.251 to 11/0/0 hops: 06 T_DATA_XXX_REQ A_GroupValue_Write (small) 01 Layer 0(0149A128,583D8300) Write(018): 80 BC 81 11 82 FB 83 58 84 00 85 E1 86 00 87 81 48 91 Layer 0(0149A128,583D8300) RecvB(001): BC Layer 0(0149A128,583D8300) RecvB(007): 11 FB 58 00 E1 00 81 Layer 0(0149A128,583D8300) RecvB(002): 91 8B Layer 0(0149A128,583D8300) Ignoring this telegram. We sent it. Layer 2(0149A128,583D8302) Send L_Data low from 1.1.251 to 11/0/0 hops: 06 T_DATA_XXX_REQ A_GroupValue_Write (small) 00 Layer 0(0149A128,583D8302) Write(018): 80 BC 81 11 82 FB 83 58 84 00 85 E1 86 00 87 80 48 90 Layer 0(0149A128,583D8302) RecvB(001): BC Layer 0(0149A128,583D8302) RecvB(007): 11 FB 58 00 E1 00 80 Layer 0(0149A128,583D8302) RecvB(002): 90 8B Layer 0(0149A128,583D8302) Ignoring this telegram. We sent it. Layer 2(0149A128,583D830A) Watchdog Status(001): 02 Layer 0(0149A128,583D830A) RecvB(001): 07 Layer 0(0149A128,583D830A) RecvWatchdog: 07

Price and availability

This module will be available by end of February
