BLESCANNER BLESCANNER

Archive — discontinued

This product is no longer manufactured and cannot be ordered. The page stays online as a reference for devices still in use; specifications, prices and external links date from the time it was sold and may be out of date.

A triple module BLE/iBeacon scanner with Linux core based on Raspberry Pi Zero. RP-SMA sockets connect to 2.4GHz sector antennas.

LES - Bluetooth LE (Low Energy) iBeacon scanner - Raspberry Pi Zero based

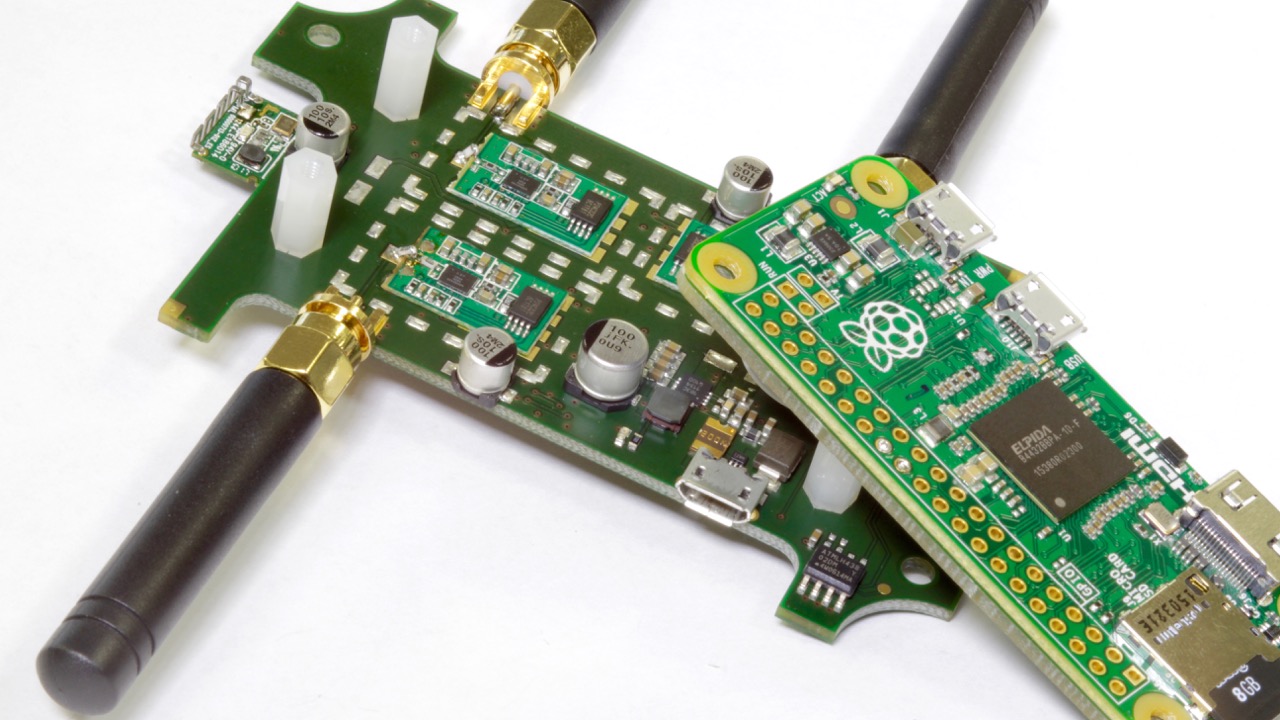

LES - Raspberry Zero ontop of multiple 2.4G radios

General

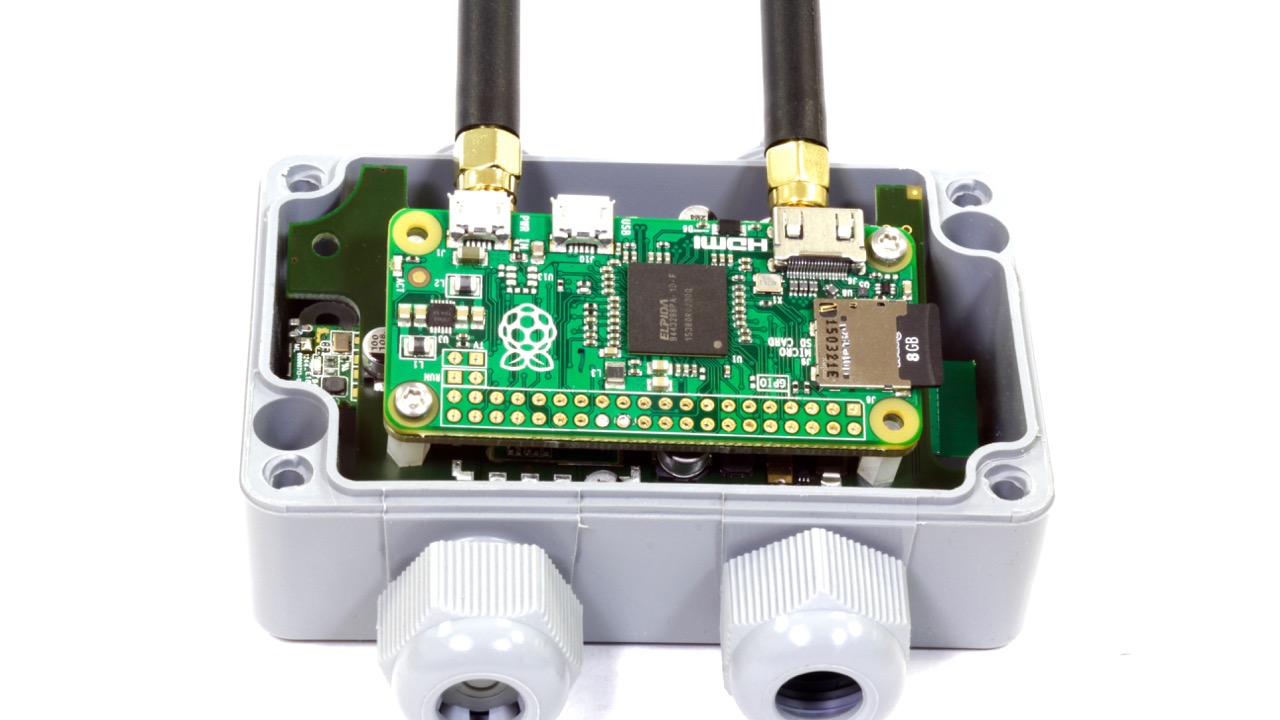

A triple module BLE/iBeacon scanner with Linux core based on Raspberry Pi Zero. RP-SMA sockets connect to 2.4GHz sector antennas. Scanner unit in waterproof housing

Specs

triple CSR8510 BT4.0 chip @ RP-SMA
WiFi (EW-7811)
system console on separate Bluetooth channel with standard SPP
USB host

References

WIMKI - “Where Is My KId?” - Lowgrade tracking system

Availability

This unit will only be available on request
