PIGATOR Onewire - a single module carrier with RTC and 1wire

General

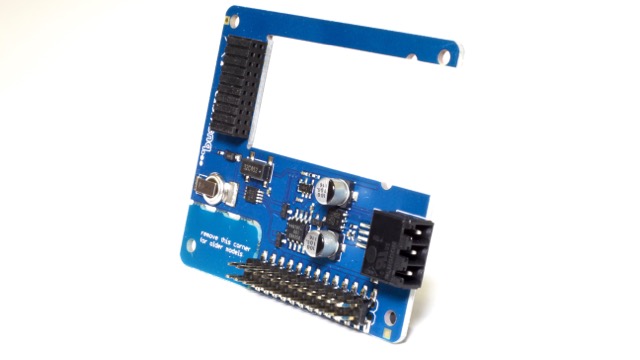

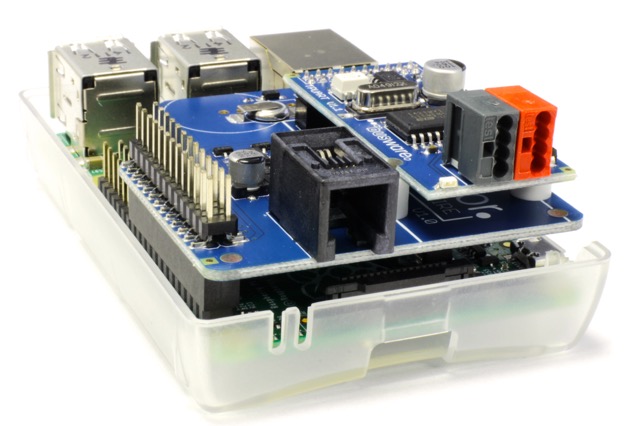

This device can carry one PIGATOR module and has itself OneWire? connectivity and supercap backed Real-Time-Clock?.

powerful EIB/KNX server based on RPi B+

see:

• image gallery

Specs

• modified HAT outline: fits on all RPi models A/B A+/B+ - and Banana Pi
• DS2482-OneWire @ I2C w/ 5V Levelshifter & strong pullup @ RJ10-4P4C
• DS1338 RTC with super cap energy storage
• 1 slot for PIGATOR module
• uplink header

Onewire

Front view plug / Stecker von vorn

3-yellow (+5V - 350mA fused) / 4-green (OW) / 5-red (OW) / 6-black_or_white (GND)

Installation

• read our installation guide

Price and availability

This extension is available in our shop starting 39 Euros.
