PIGATOR


- more information soon -

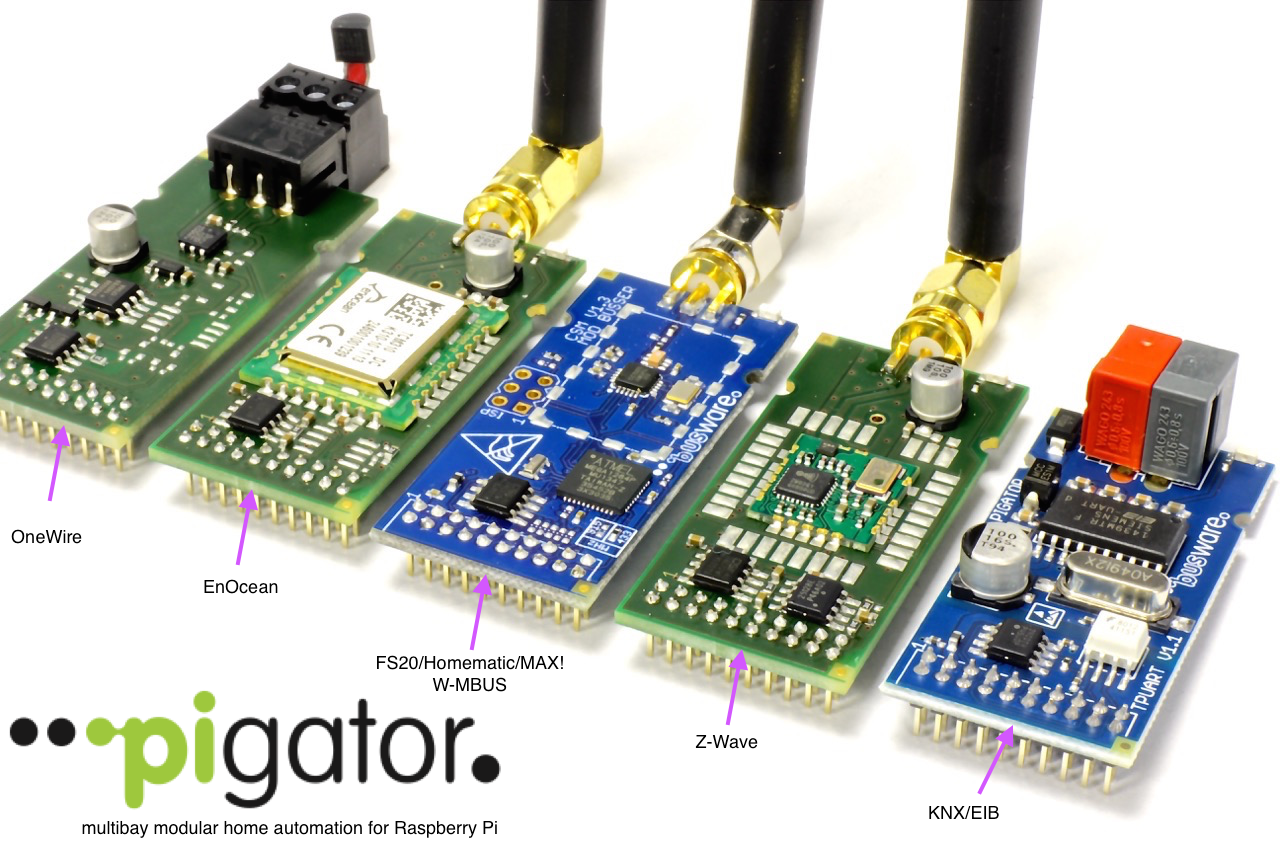

available modules:

  • CC1101 for FS20/Homematic/MAX!/WMBUS etc.
  • Onewire
  • Z-WAVE
  • EIB/KNX
  • RS485
  • 2ch S0-meter-interface
  • proprietary Homematic-UART module
  • BLE-Scanner
  • GSM modem
  • CAN
  • wired MBUS
  • DALI

available carriers:


  • non-Raspberry:

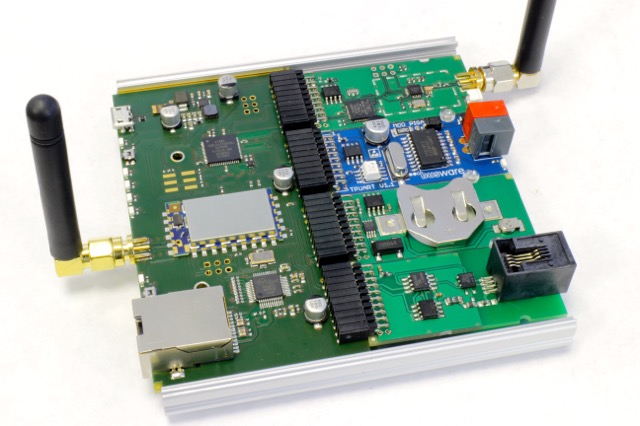

opened Tuxradio device with CC1101-PIGATOR-module mounted (left)

    • BUSSER - Wifi-USB-Network access to 4/8 PIGATOR slots

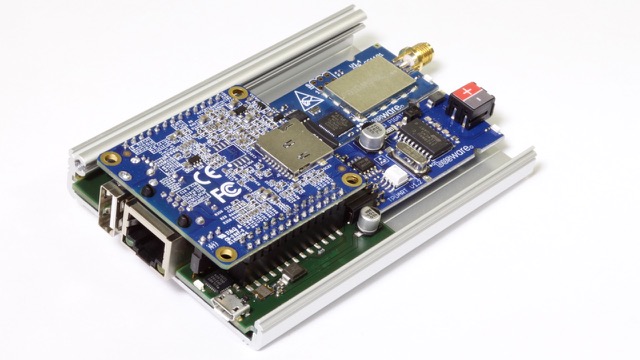

BUSSER USB 4P with four different PIGATOR-module mounted (light green at right)

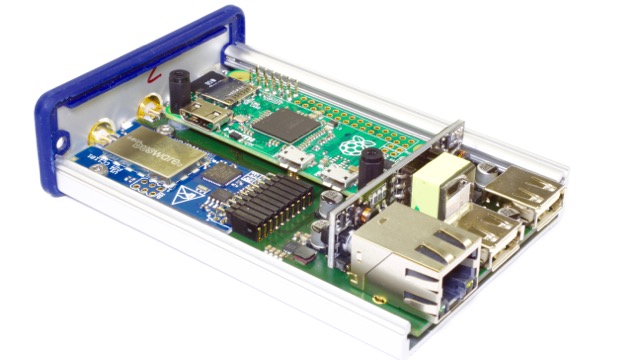

BUSSER2P - OrangePi? Zero driven two PIGATOR-module mounted

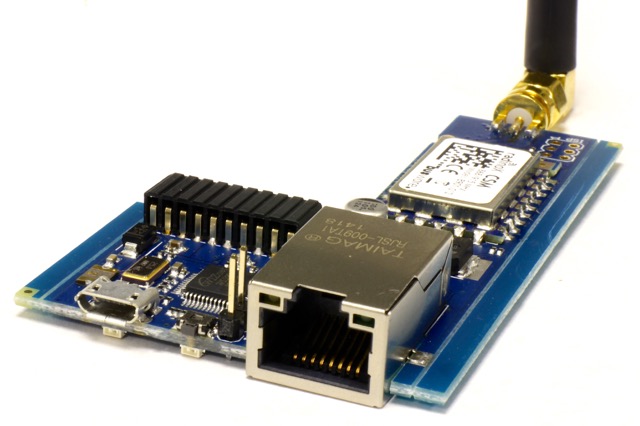

CC1101-USB-Network + a PIGATOR module slot

Modul connector

All modules use the same pinout on 2x10P 2.00mm header. Modul carriers dedicate an UART, I2C, SPI and several GPIOs to each slot. Example below:
