CUNO V2 - CC1101 USB Network Onewire ...

The CUNO will be replaced by CUNX shortly.

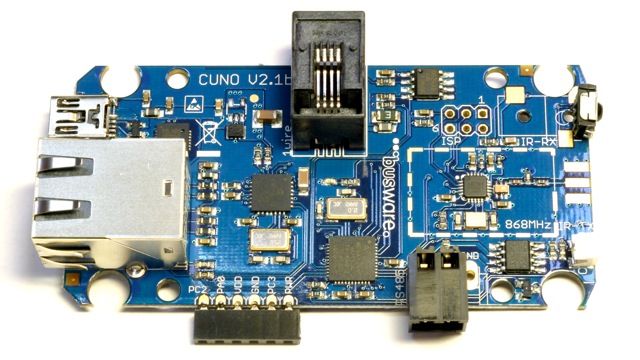

featuring:

• m1284 cpu
• CC1101 @ 868MHz/433MHz
• USB - CP2102
• OneWire? host DS2482 @ RJ10 - 4p4c
• Ethernet - ENC28J60
• RS485 interface on pinheader (optional socket)
• Infrared Rx (38kHz) & Tx (with optional Rx socket)
• 3GPIO feature connector
• bootloader switch
• multi purpose led
• 6ISP connector
• RP-SMA edge-pinheader
• powered over USB
• plastic housing available

Have a look at this modules Image Gallery

Documents

• OUI mask for CUNO is: A4-50-55-00-1x-xx
• CUNO2 top placement
• CUNO2 schematics

Onewire

Front view plug / Stecker von vorn

3-yellow (+5V fused) / 4-green (OW return) / 5-red (OW) / 6-black (GND)

Discussion

• CUL fans group

Firmware

• culfw - firmware for FHEM
• How to flash this device:
  • locate the PROGRAM button at the module
  • keep it pressed while plugging the USB cable in (make sure you you have CP210X-USB drivers for your OS installed)
  • at the enumerated serial port run:

• optionally you may run: make usbprogram

3nd party projects

• FHEM support

Availability

This module is no longer available. Checkout CUNX as an replacement ...
