TRR - TP-UART, RTC on DIN-Rail w/RPi

prototype

see Pigator-Onewire-DIN-rail for actual available product.

General

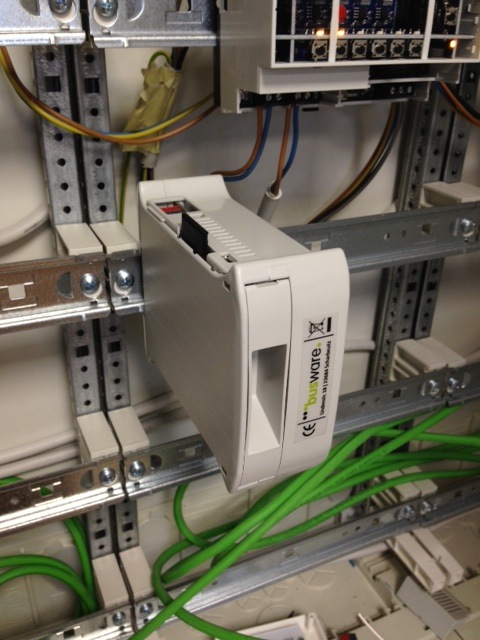

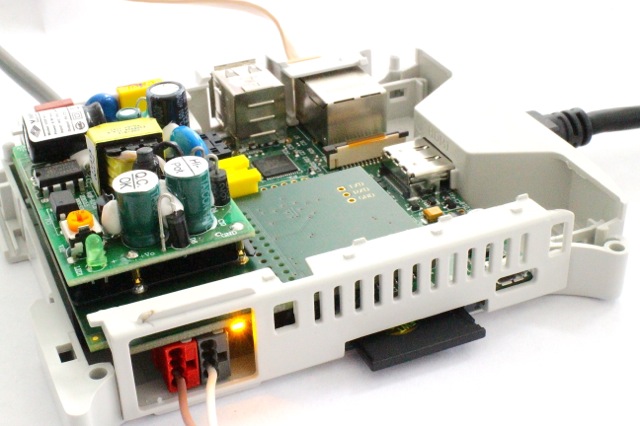

Primary AC-grid powered DIN-rail solution with Raspberry Pi B, RTC and native KNX access through TP-UART



see:

Specs

  • DS1339 RTC @ I2C - with 220mF SuperCap backup
  • opto isolated TPUART @ ttyAMA0
  • DIN rail mount enclosure
  • IEC_60320 C7 socket input: 85 bis 264 V AC - 6W supply (optionally 10W)
  • 3 slots for PIGATOR modules

Price and availability

see POD for actual products
