RF69 USB light - Stick

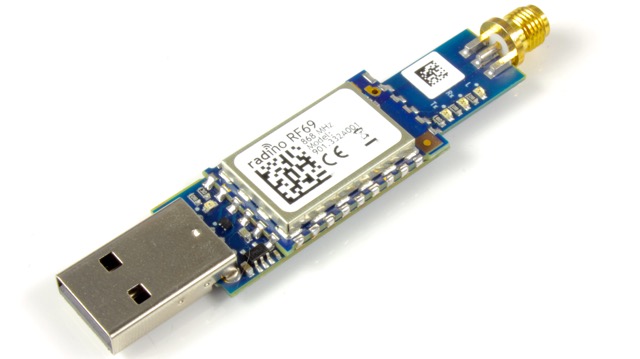

RF69 USB stick

General


This module glues an RF69 (RFM12B compatible) wireless radio transceiver module to USB 2.0.
The module is Arduino-Leonardo compatible. So you may use Arduino IDE to program it.

The radio itself is internally connected alike:
//RFMxx::RFMxx(byte mosi, byte miso, byte sck, byte ss, byte irq) {
RFMxx rfm(16, 14, 15, 8, 7);


Specs

  • RFM69W
  • ATmega32u4 @ 8MHz
  • USB A male connector
  • Whip or SMA antenna
  • dual LED
  • Arduino bootloader - allows flashing firmware by using USB
  • optional: 2x3pin 100mil ISP feature connector
  • optional: plastic case

Documents

Firmware

Price and availability

This module is no longer available in our shop
