Pimp my Funksteckdose - a typical CPM application

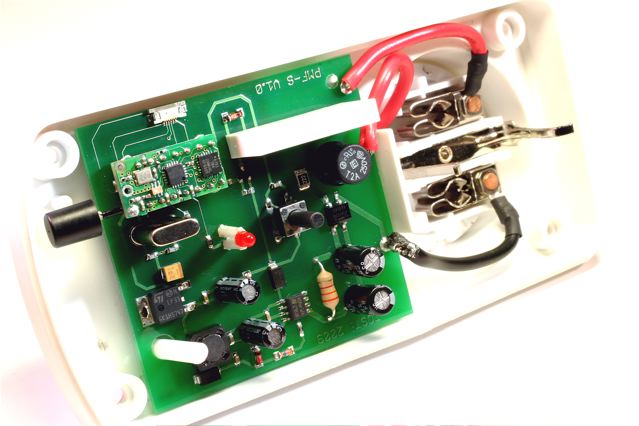

Wireless switching socket PMF-S

This device is made out of an ordinary "Funkschalter" you can buy for less from discounters. (3pcs less than 10 Euro).
We replaced the PCB in it to make it work properly and bidirectional using an CC1101 chip. This gives you the opportunity to implement any switching logic you like, as the used CPM-Module contains an ATMEL AVR which is freely programmable.
The rest of the PCB is occupied by a (maybe too-) powerful Step-Down? power supply and the relais.

Have a look at this modules Image Gallery

Demonstration firmware

  • FS20 actor
(in progress)
  • EnOcean? actor
(in progress)
  • KNX-RF actor
(in progress)

Created by: tostmann last modification: Saturday 07 of March, 2009 [12:39:32 UTC] by tostmann
