Ceiling Sensor Board

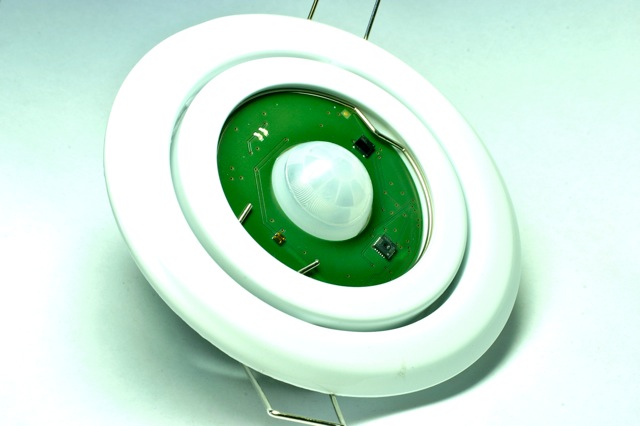

prototype sensor in frame

General

The sensor board is aimed to collect several in-room data from its ceiling
- see image gallery

Specs

  • 50mm design to fit as MR15 lamp replacement
  • m1284p processor @ 8MHz
  • CC1101 radio transceiver
  • RS485 interface @ RJ45 sockets
  • AC/DC supply 6..20V (there is NO battery option due to current consumption)

Sensors:
  • PIR
  • Temperature/Humidity
  • Brightness
  • Infrared Receivers sensor 38KHZ
  • Air pressure

  • IR transmitter 850nm
  • LED

Availability

The sensor will be available end of June in our shop.

Created by: tostmann last modification: Thursday 09 of May, 2013 [13:22:47 UTC] by tostmann
