WiTally - a WiFi? Tally system

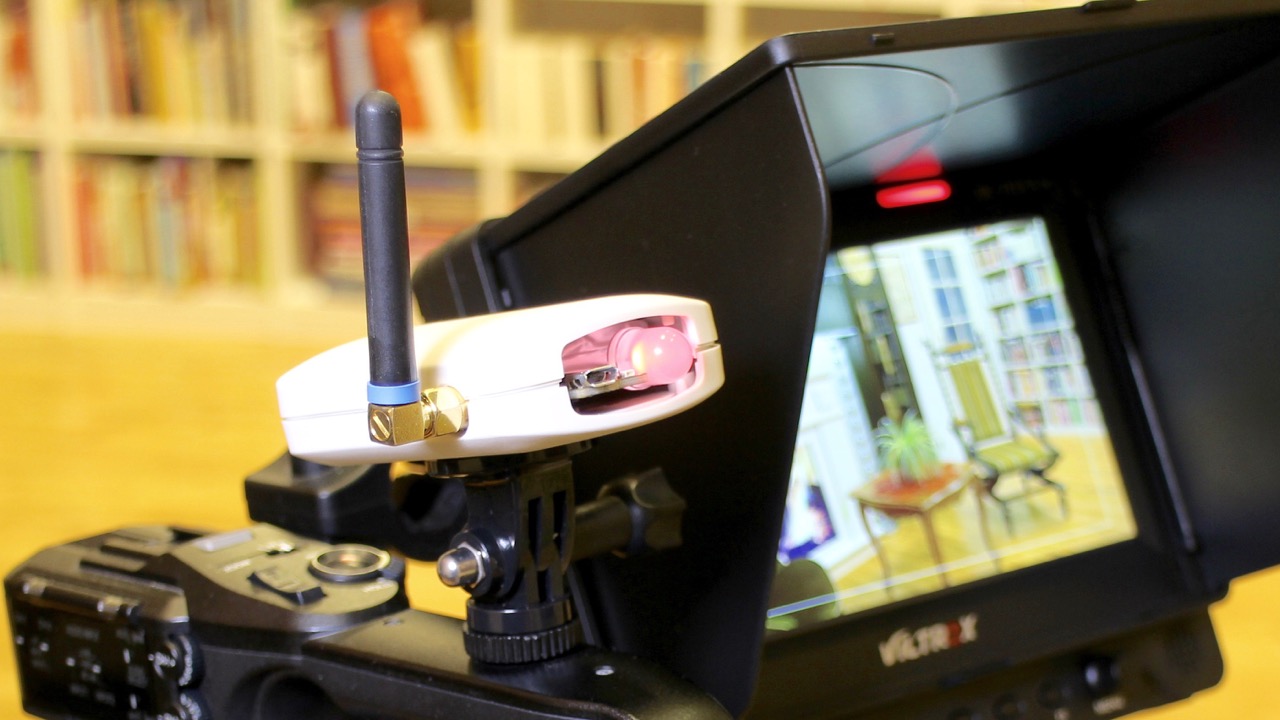

WiTally mounted

General

The open-source WiFi-Tally-Light? is a small rechargeable-battery powered WiFi? 2,4GHz device.
On its front and back there are 10mm red/green LED - plus a 2,5mm jack for external tally - as seen here the DC-70EX field monitor.
Program the device using Arduino-ESP8266-IDE. Use SKAARHOJ-libraries to easily access ATEM switchers.
In addition the device features a digital Accelerometer and magnentometer/compass to automatic control PTZ cameras.
The built-in rechargeable-battery gives you 8 hrs of operation and will be recharged using the micro USB port - also used as serial interface to the ESP-controller and device programming.

see:

Specs

  • ESP8266 core
  • RP-SMA antenna socket
  • CP2101 serial 2 USB bridge
  • LiPo? battery (1200mAh) and charger
  • Accelerometer and magnentometer
  • Power slide switch
  • 2+2 LED / 1 Button
  • 2,5mm stereo jack for external Tally

Availability

This device will be available mid Feb'18 in our shop
