TuxRadio version 1 - Linux & SRD radio

Click here for: more images

Spec

• i.mx233 ARM9 - 450 MHz
• 64MB DDR RAM
• microSDHC HDD 2+ GB allowing full featured Debian to run
• CSM 868MHz radio module
• USB host for WLAN, Ethernet or UMTS/HSDPA connectivity
• 3x16 LCD display with back light
• Infrared receiver
• AV socket - Stereo Audio out / TV out

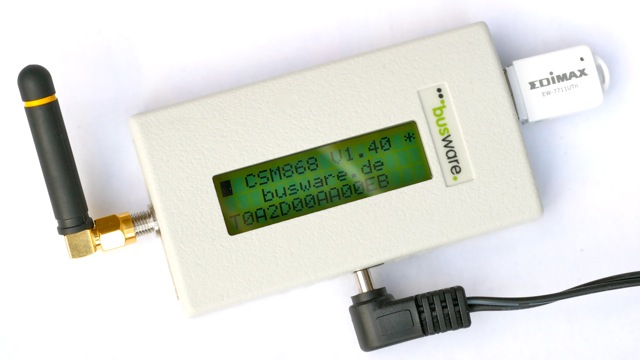

• plastic housing - smaller than a cigarette pack
• 5V/2A power supply
• avg. power consumtion 2 watts
• socket for serial debug console

Software/Sources

• Debian (Squeeze) - Minimal Root-FS
• special pre-compiled packages:
  • fhem - perl server for house automation
  • shairport - Airtunes emulator

Documents

• Schematics

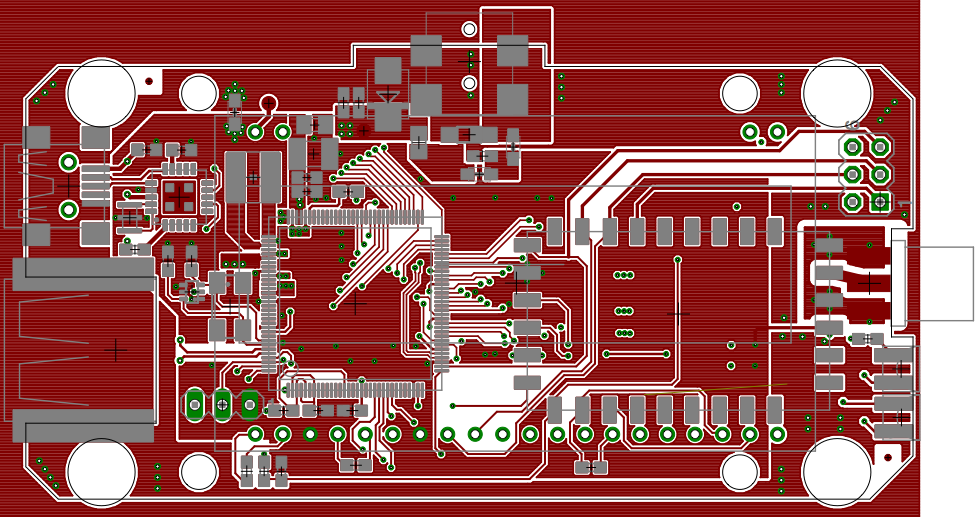

• Placement top
• Placement bottom

Price and availability

The base model is no longer available in our shop.

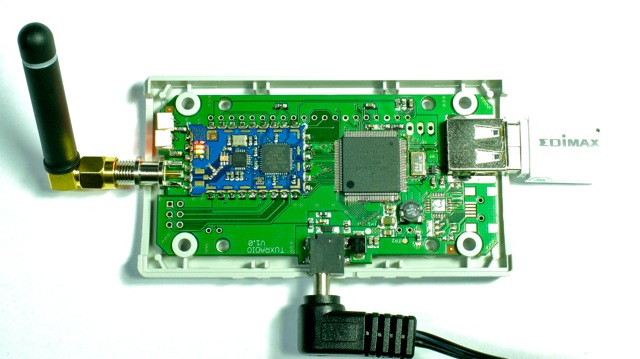

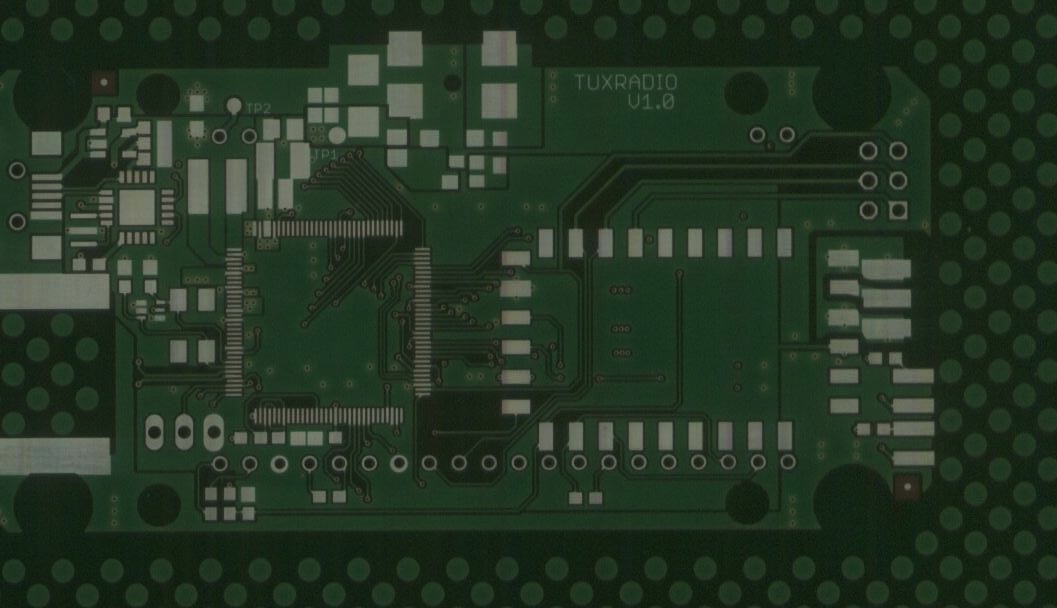

Prototyping stages:
