TuxRadio Version 4 - Linux & SRD radio & PIGATOR

miniature RPi-Zero based Linux system with 868MHz radio interface and additional expansion slot


old TuxRadio version 2 wiki

Click here for: more images

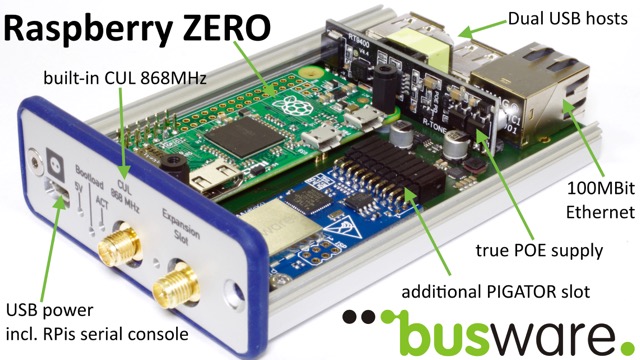

Spec

  • driven by Raspberry Zero
  • 100MBit LAN
  • true four data wire POE (Power over Ethernet) power supply
  • dual USB host for WLAN, BLE or UMTS/HSDPA connectivity
  • CUL built in (/dev/ttyACM0)
  • one additional PIGATOR extension slot (/dev/ttyACM1)
  • slim aluminium housing
  • micro USB power supply - including serial console to RPi-Zero for configuration

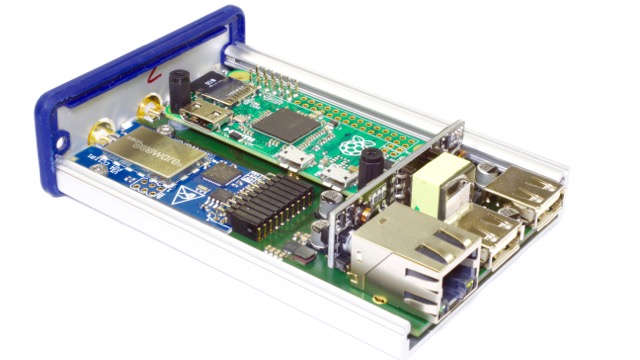

Raspberry Zero beside an optional PIGATOR module

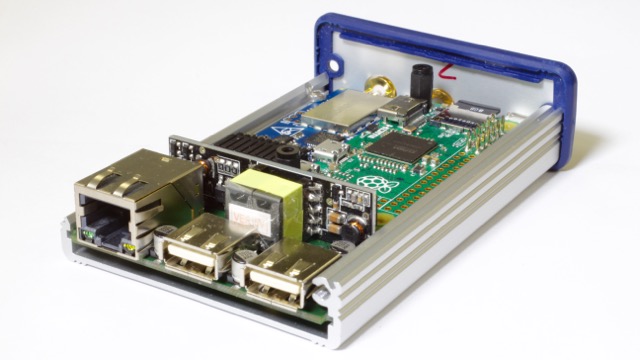

facing dual USB and Ethernet ports
slim aluminium enclousure with optional PIGATOR module mounted

Installation

Software/Sources

  • you may use any software/image provided for Raspberries

Price and availability

This TuxRadio V4 is available in our shop. (Due to sales restrictions: Rasperry Zero won't be included)

Created by: tostmann last modification: Wednesday 22 of February, 2017 [14:45:25 UTC] by tostmann
